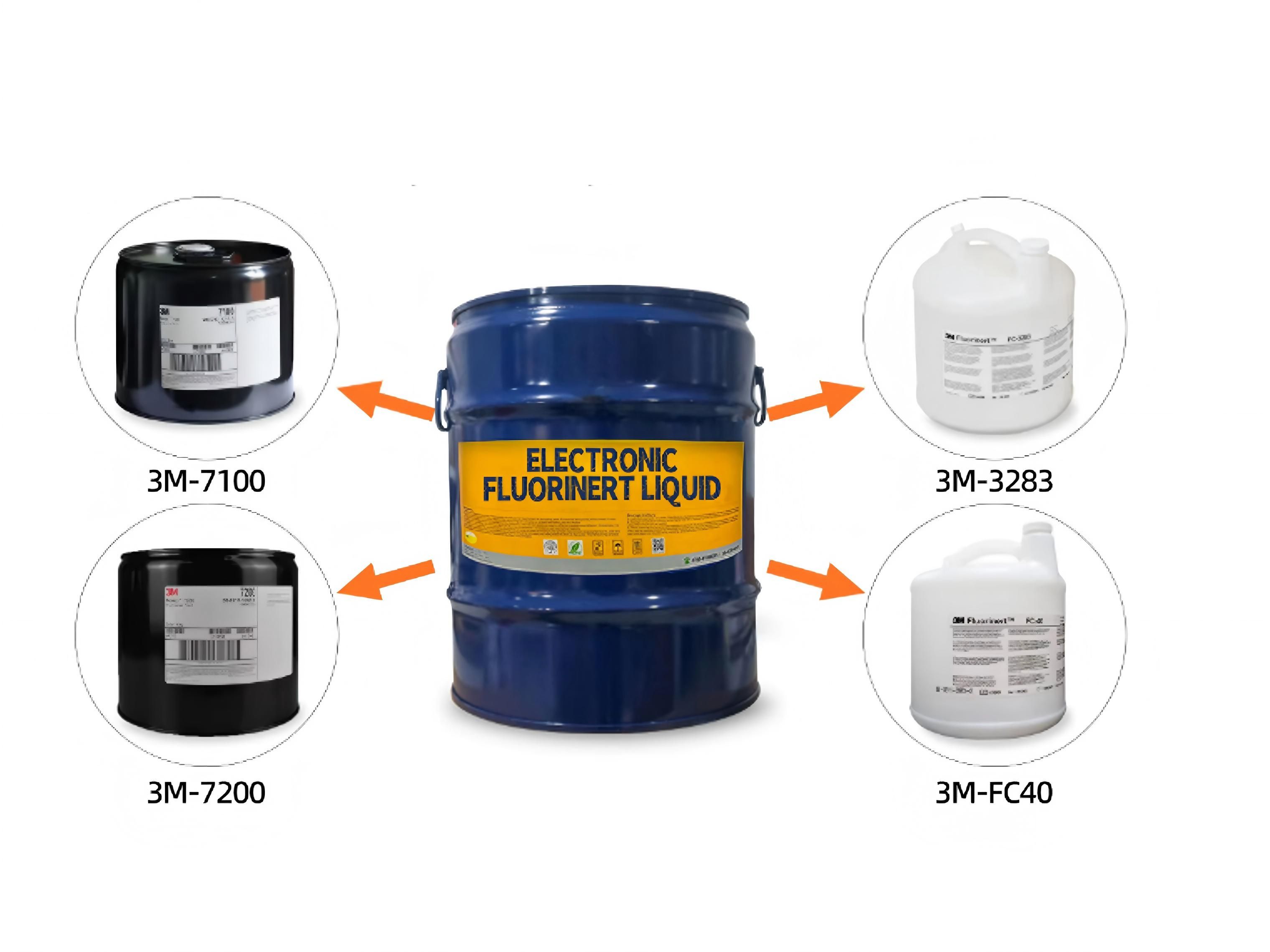

Solvent Cleaning Solution Hydrofluoroether Equivalent to USA 3M Novec 7100

Due to its excellent thermal and chemical stability, environmental safety, and non-flammability, it is widely used in various fields, including electronics, power generation, aviation, automotive, and chemical engineering. Furthermore,

YBS-J7100 has zero ozone depletion potential (ODP) and significantly lower greenhouse gas emissions compared to HFCs and PFCs, making it an ideal long-term solution for leading companies committed to green environmental protection.

Model:

YBS-J7100

Inquiry

Write a Review

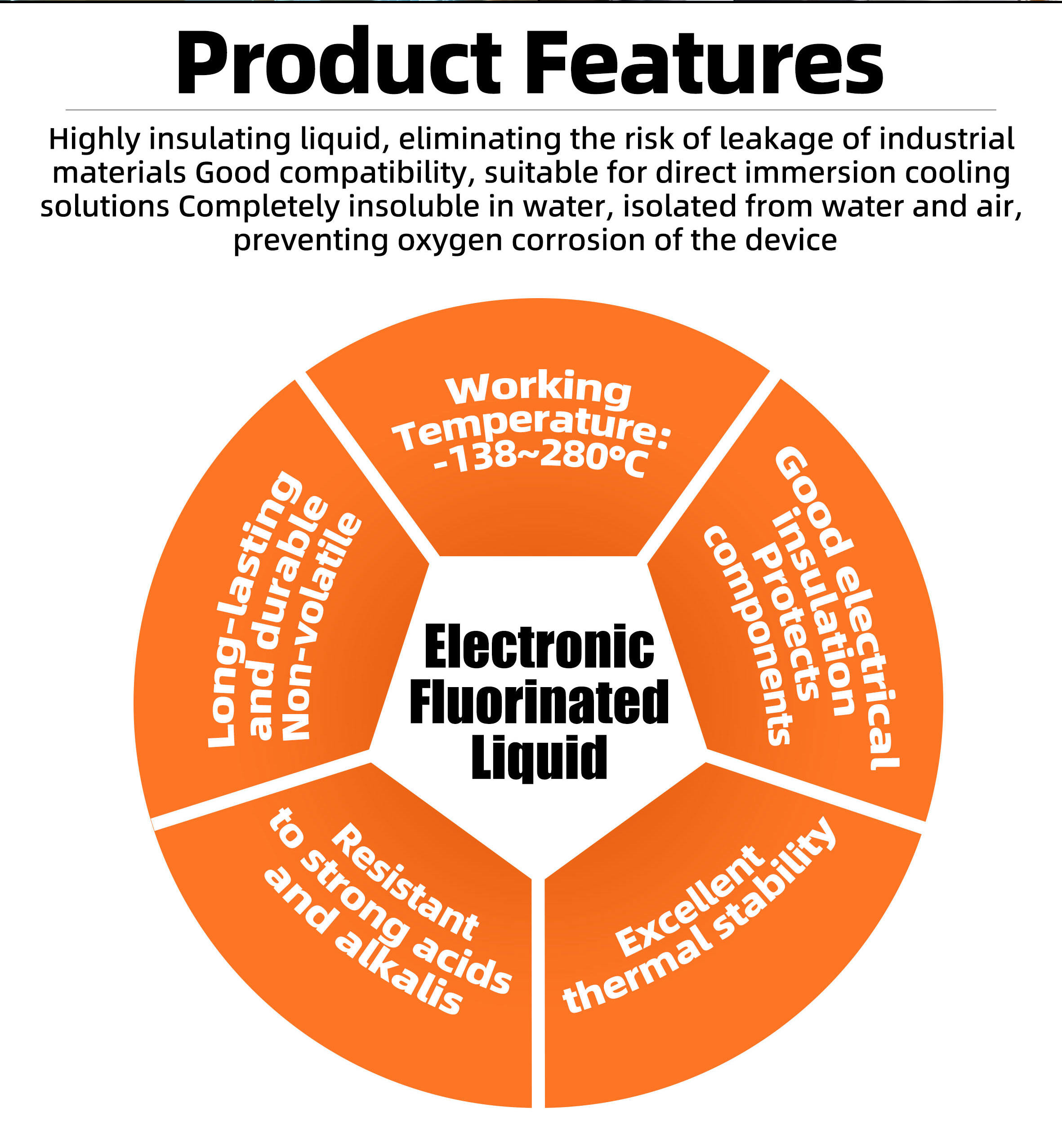

Performance characteristics

Solvent Cleaning Solution Hydrofluoroether Equivalent to USA 3M Novec 7100 4 Excellent dielectric insulation properties.

Solvent Cleaning Solution Hydrofluoroether Equivalent to USA 3M Novec 7100 5 Low surface tension and high wettability.

Fast evaporation and residue-free drying.

Non-flammable and thermally stable.

Solvent Cleaning Solution Hydrofluoroether Equivalent to USA 3M Novec 7100 6 High chemical stability and material compatibility.

Solvent Cleaning Solution Hydrofluoroether Equivalent to USA 3M Novec 7100 7 Suitable for precision cleaning and immersion cooling applications.

Solvent Cleaning Solution Hydrofluoroether Equivalent to USA 3M Novec 7100 9 Efficient heat transfer performance.

Solvent Cleaning Solution Hydrofluoroether Equivalent to USA 3M Novec 7100 10 Low toxicity and low odor characteristics.

Solvent Cleaning Solution Hydrofluoroether Equivalent to USA 3M Novec 7100 11 ESelected grades offer low global warming potential (GWP).

Solvent Cleaning Solution Hydrofluoroether Equivalent to USA 3M Novec 7100 12 Environmentally preferable alternative to traditional fluorinated fluids.

Compatible with sensitive electronic and semiconductor components.

Solvent Cleaning Solution Hydrofluoroether Equivalent to USA 3M Novec 7100 13 Available in a wide range of boiling points and viscosities for process flexibility.

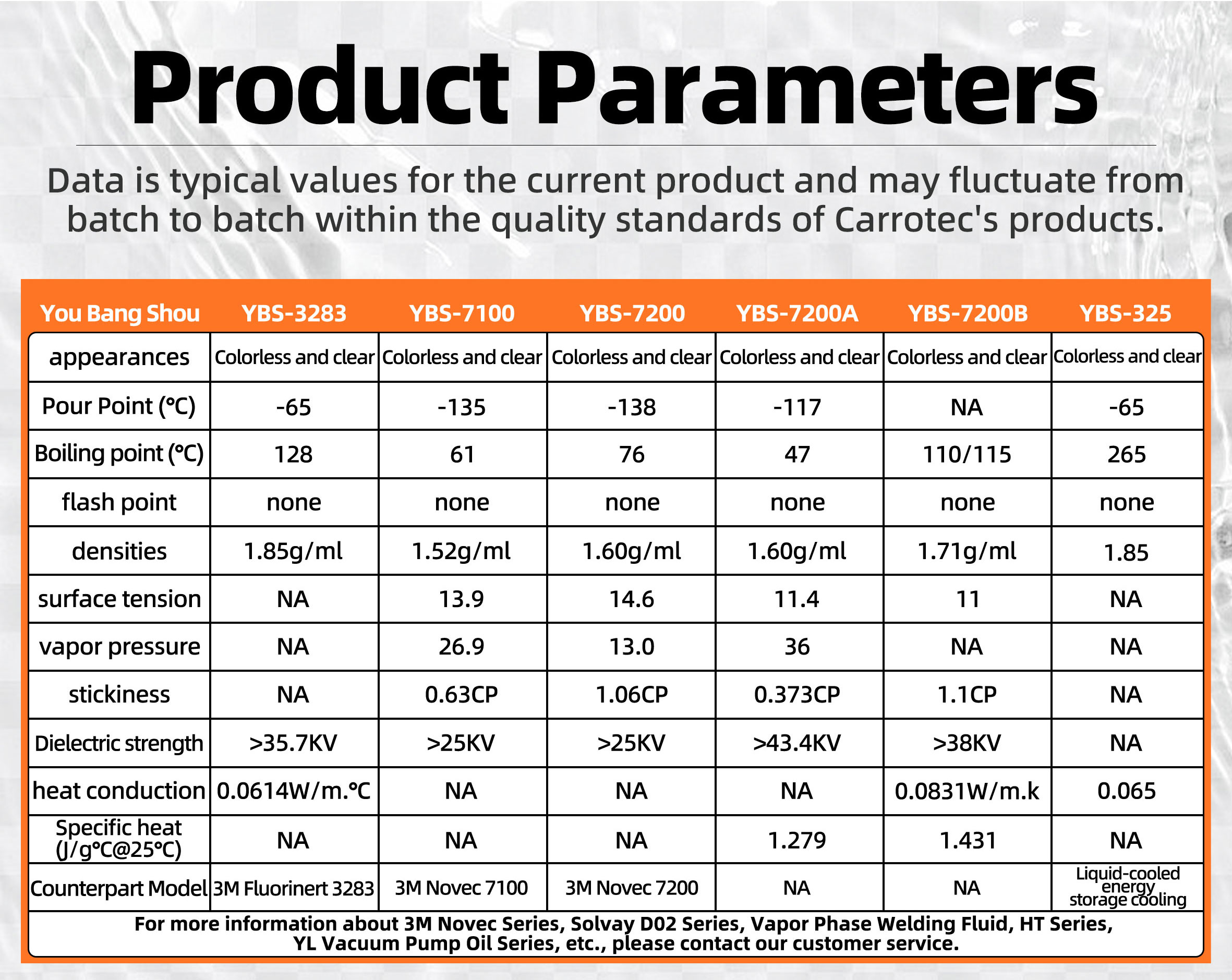

Performance characteristics

Solvent Cleaning Solution Hydrofluoroether Equivalent to USA 3M Novec 7100 14

YBS-J7100 Electronic Fluorinated Liquid

Product Name

Solvent Cleaning Solution Hydrofluoroether Equivalent to USA 3M Novec 7100 15

Transparent liquid

Appearance

61°C

Boiling Point

-135℃

Pour Point ℃

250 G/mol

Molecular Weight

195°C

Critical Temperature

2.23Mpa

Critical Pressure

27 kPa

Vapor Pressure

112KJ/KG

Heat of Vaporization

1510 KJ/m3

Liquid Density

Product Application

Used as a high-end cleaning agent

It can be used to clean semiconductor etching cavities and components; remove fluorine residue deposits; and clean... FOUPs (Front-Open Standard Wafers) (Box ); Cleaning particulate impurities from precision electronic components; Cleaning LCD / OLED Displays, optical components and lenses; car washing engine parts; cleaning of communication equipment, aircraft engines, and oxygen pipeline equipment; cleaning of medical equipment and high-end chips, etc.

Used as a fluorinated solvent

It can be used as a thinner for electronic coatings and screen coatings; fluorinated oils, fluorinated resins, and fluorinated coating thinners; reaction solvents; and for analytical purposes. Extraction solvents, etc.

Used as a refrigerant

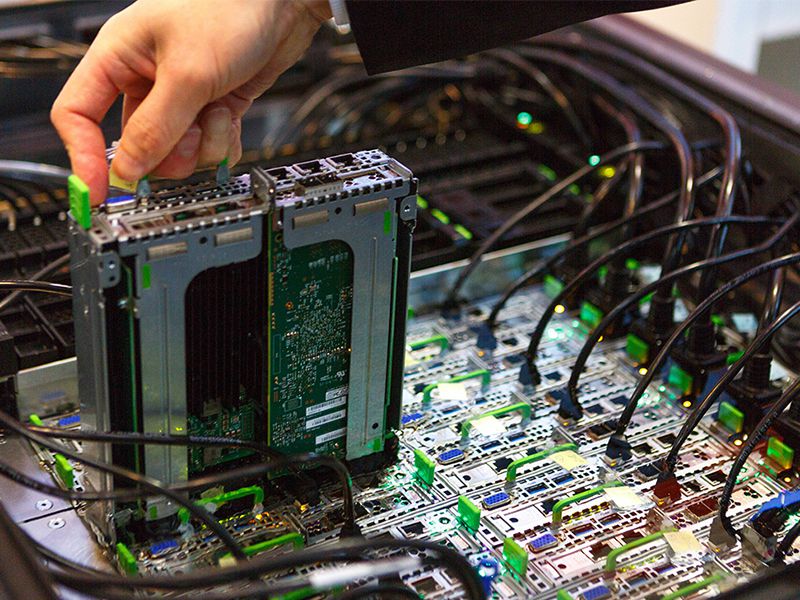

It can be used as an immersion refrigerant in data centers; an immersion refrigerant for power devices; a temperature control refrigerant for dry etching equipment, photolithography equipment, ion jetting equipment , probes and information processing equipment; it can also be used in cooling equipment in the food industry, freeze drying, freezing and crushing of rubber and plastics, and cooling equipment in the chemical and pharmaceutical industries.

Note:

*This product is supplied in 1KG and 5KG 25KG 200KGdrum packaging.

immersion refrigerant for power devices (2)

Solvent Cleaning Solution Hydrofluoroether Equivalent to USA 3M Novec 7100 27

Operating Precautions

■ Use in well-ventilated areas. ■ Avoid contact with eyes and prolonged skin exposure. ■ Keep container tightly closed when not in use. ■ Do not mix with other chemicals. ■ Store in a cool, dry place away from sunlight.

How To Use

■ Apply by immersion, spraying, or ultrasonic cleaning. ■ Ensure full contact with the parts to be cleaned. ■ Allow to evaporate naturally after cleaning, no rinsing needed. ■ For cooling, use in closed systems and keep sealed.
