Anti Seize Compound for Threaded Connections Assembly Paste Equivalent to Molykote 1000 Paste

YBS-1000 Paste is a lubricant formulated with mineral oil, solid lubricant, and various additives. It is lead- and nickel-free and designed for high-load, high-temperature, and corrosive environments. It is suitable for the lubrication and protection of metal-to-metal joints.

Inquiry

Write a Review

Performance characteristics

Anti Seize Compound for Threaded Connections Assembly Paste Equivalent to Molykote 1000 Paste 6 Suitable for a wide temperature range (-35 ° C/-22 °F to +650 °C/1,202 °F).

Anti Seize Compound for Threaded Connections Assembly Paste Equivalent to Molykote 1000 Paste 7 High load-bearing capacity.

Anti Seize Compound for Threaded Connections Assembly Paste Equivalent to Molykote 1000 Paste 8 High load-bearing capacity

Anti Seize Compound for Threaded Connections Assembly Paste Equivalent to Molykote 1000 Paste 9 Good corrosion resistance.

Anti Seize Compound for Threaded Connections Assembly Paste Equivalent to Molykote 1000 Paste 11 Even after repeated tightening and loosening of the screws, the friction system in the oiled bolt area remains unchanged.

Anti Seize Compound for Threaded Connections Assembly Paste Equivalent to Molykote 1000 Paste 12 No polytetrafluoroethylene or other perfluorinated/polyfluoroalkyl substances (PFAS) added.

Performance characteristics

Testing items	YBS-1000 Paste	Test Standards
Appearance and condition	Brownish-black ointment	Visual inspection
Cone penetration (25℃), 0.1mm	280～310	GB/T 269
Density at 25°C, g/ cm³	Approximately 1.13	Densitometer
Recommended temperature	-35～650℃	-
Four-ball welding load, N	4800	SH/T 0204
Four-ball abrasion marks, mm	0.65	SH/T 0204

Note: The above data are typical values for the current product.

The data for each batch of products in the future may fluctuate within the allowable range of the quality standards of Jialede products.

Application and Packaging Specifications

Steam turbine/gas turbine threaded connection

Suitable for bolt anti-seize in high temperature and high pressure environments, ensuring quick disassembly during shutdown maintenance.

Injection molding machine nozzle head threads

Withstand the high temperature of molten plastic (up to 650℃), preventing thread sticking and wear.

Mold threaded connection

In repeated assembly scenarios of plastic molds and die-casting molds, ensure stable preload after multiple disassembly and assembly.

Automotive engine components

Such as cylinder head bolts and turbocharger threads, is necessary to prevent seizing due to high temperatures.

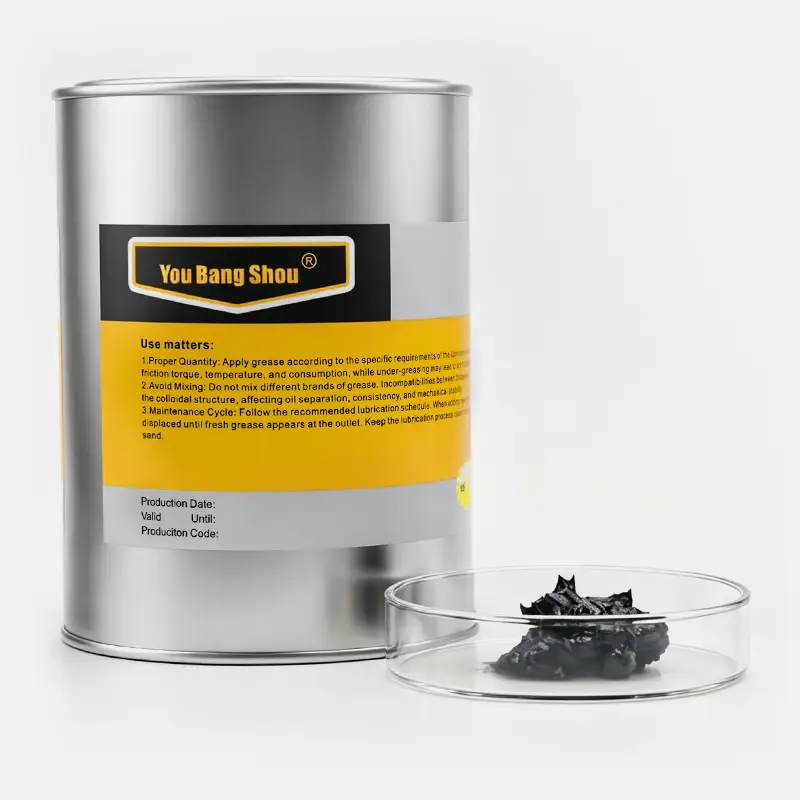

Anti Seize Compound for Threaded Connections Assembly Paste Equivalent to Molykote 1000 Paste 13 This product is available in 1kg tin cans, 20kg drums and 200kg drums, as shown in the picture above. Customized packaging is also available upon request , and OEM packaging is also offered.

Anti Seize Compound for Threaded Connections Assembly Paste Equivalent to Molykote 1000 Paste 14 Please store in a dry place, away from other flammable materials, heat sources and direct sunlight

Injection molding machine nozzle head threads

Mold threaded connection

Steam turbine gas turbine threaded

cylinder head bolts

turbocharger threads

Anti Seize Compound for Threaded Connections Assembly Paste Equivalent to Molykote 1000 Paste 20

Operating Precautions

■ Avoid Contamination: Do not use in high-cleanliness systems (e.g., vacuum or semiconductor equipment) unless a clean-grade product is specified.
■ Temperature Limits: Use within the recommended temperature range. Excessive temperatures may degrade performance.
■ Material Compatibility: Verify compatibility with rubber, plastics, and sealing materials before use.
■ Do Not Mix: Do not mix with other brands or types of anti-seize compounds.
■ Personal Protection: Wear gloves during application to avoid prolonged skin contact.
■ Storage Conditions: Store in a cool, dry place away from direct sunlight. Keep container tightly sealed after use.

How To Use

■ Surface Preparation: Ensure all surfaces are clean, dry, and free of oil, dust, moisture, and old lubricants before application.
■ Apply Evenly: Use a brush, spatula, or gloved hand to apply a uniform layer to threads, bolts, nuts, or contact surfaces.
■ Use Proper Amount: Apply a thin, even film. Avoid excessive application to prevent contamination or assembly issues.
■ Assembly: Assemble components immediately after application and tighten according to specified torque.
