Equivalent to Galden D02 D02ts D03 D05 Perfluorinated Fluid Heat Transfer Fluid

PFPE has excellent thermal and oxidative stability, as well as superb chemical inertness. It is non-reactive, has high dielectric properties, low toxicity, non-flammable and insoluble. This makes PFPE ideal for use in electrical reliability testing, including thermal shock and hermetic testing.

Model:

YBS-D02 series

Inquiry

Write a Review

Performance characteristics

Equivalent to Galden D02 D02ts D03 D05 Perfluorinated Fluid Heat Transfer Fluid 4 Good environmental conditions do not harm the ozone layer.

Equivalent to Galden D02 D02ts D03 D05 Perfluorinated Fluid Heat Transfer Fluid 5 High chemical inertness.

Equivalent to Galden D02 D02ts D03 D05 Perfluorinated Fluid Heat Transfer Fluid 6 It has extremely low volatility.

Equivalent to Galden D02 D02ts D03 D05 Perfluorinated Fluid Heat Transfer Fluid 8 Excellent heat conduction medium

Equivalent to Galden D02 D02ts D03 D05 Perfluorinated Fluid Heat Transfer Fluid 9 Chemical and thermal stability.

Equivalent to Galden D02 D02ts D03 D05 Perfluorinated Fluid Heat Transfer Fluid 10 Non-toxic.

Performance characteristics

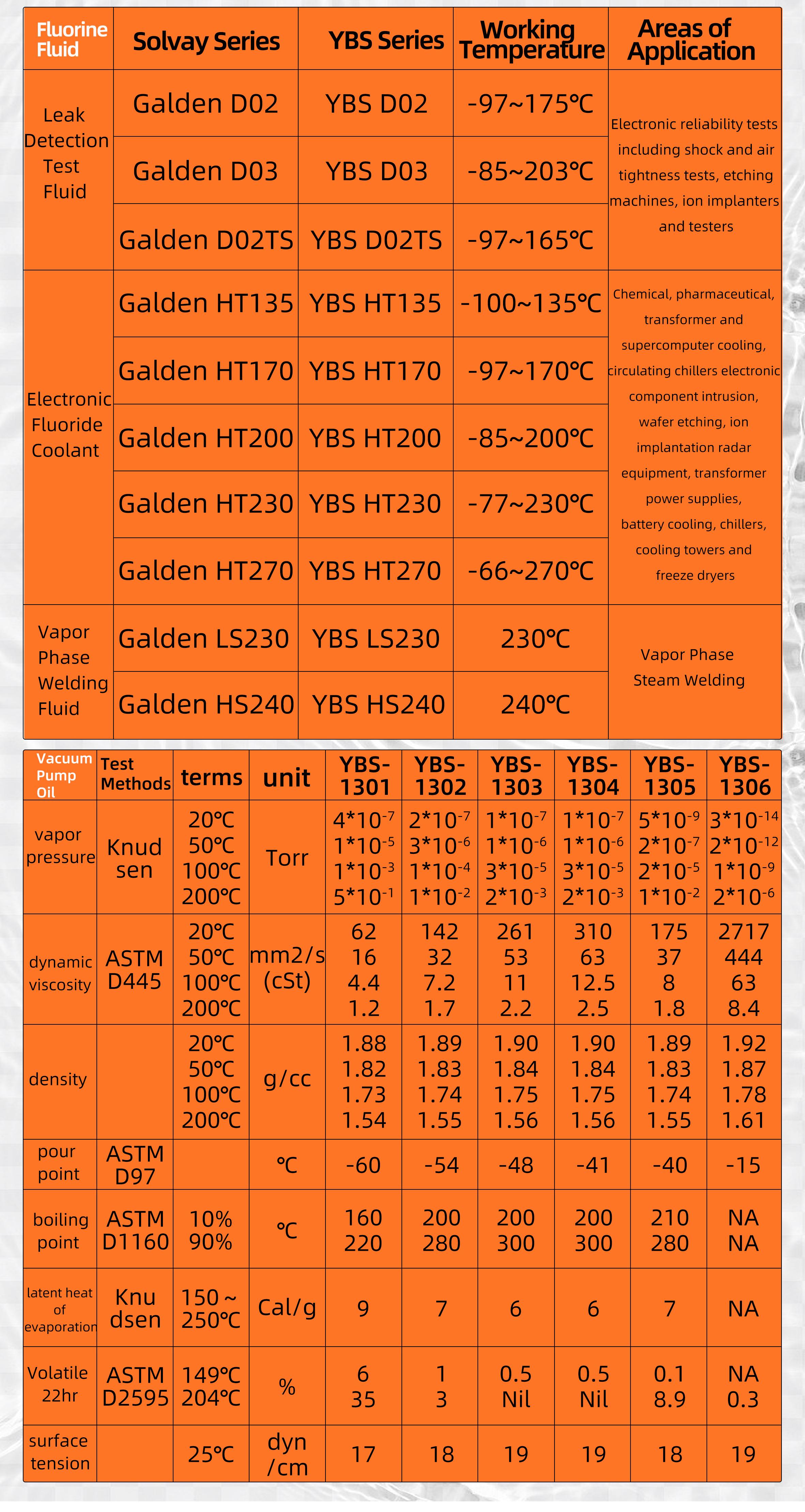

Typical Properties	Units	YBS-D02
Boiling point	℃	175
Pour point	℃	-97
Pour point	G/cm 3	1.77
Density at 125 °C	G/cm 3	1.54
Kinematic viscosity at 25 °C	cSt	1.80
Kinematic viscosity at 125 °C	cSt	0.46
Specific heat at 25 °C	J/Kg·℃	973
Thermal conductivity at 25 °C	W/m·℃	0.07
Coefficient of expansion	cm³ / cm³ · ℃	0.0011
Surface tension	Dyne/cm	16
Dielectric strength	kV (2.54 mm gap)	40
Volume resistivity	Ohm·cm	5·10 ¹⁵

Application and Packaging Specifications

Application

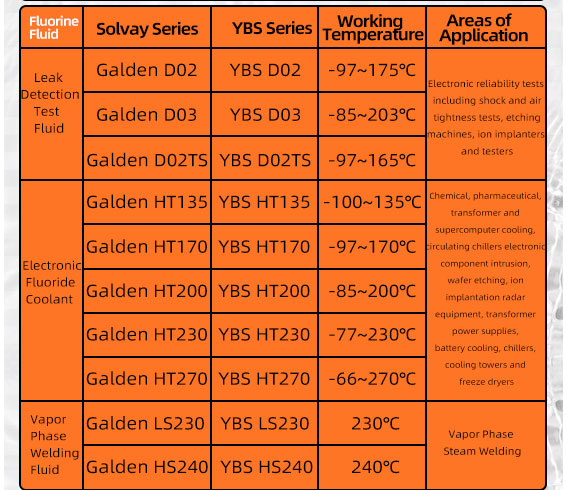

Fluorinated solvents, leak testing fluids for electronic packaging, coolants, and alternatives to 3M Fluorinert™ FC-40 , Solvay Galden® D02.

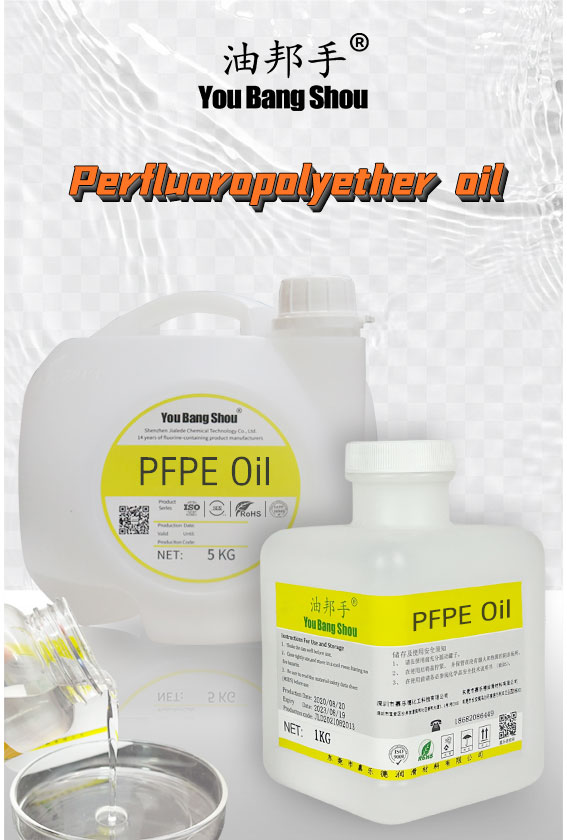

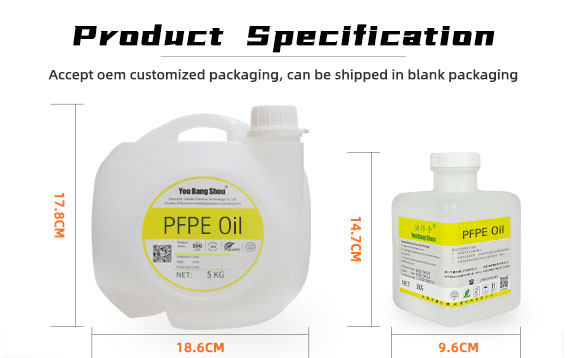

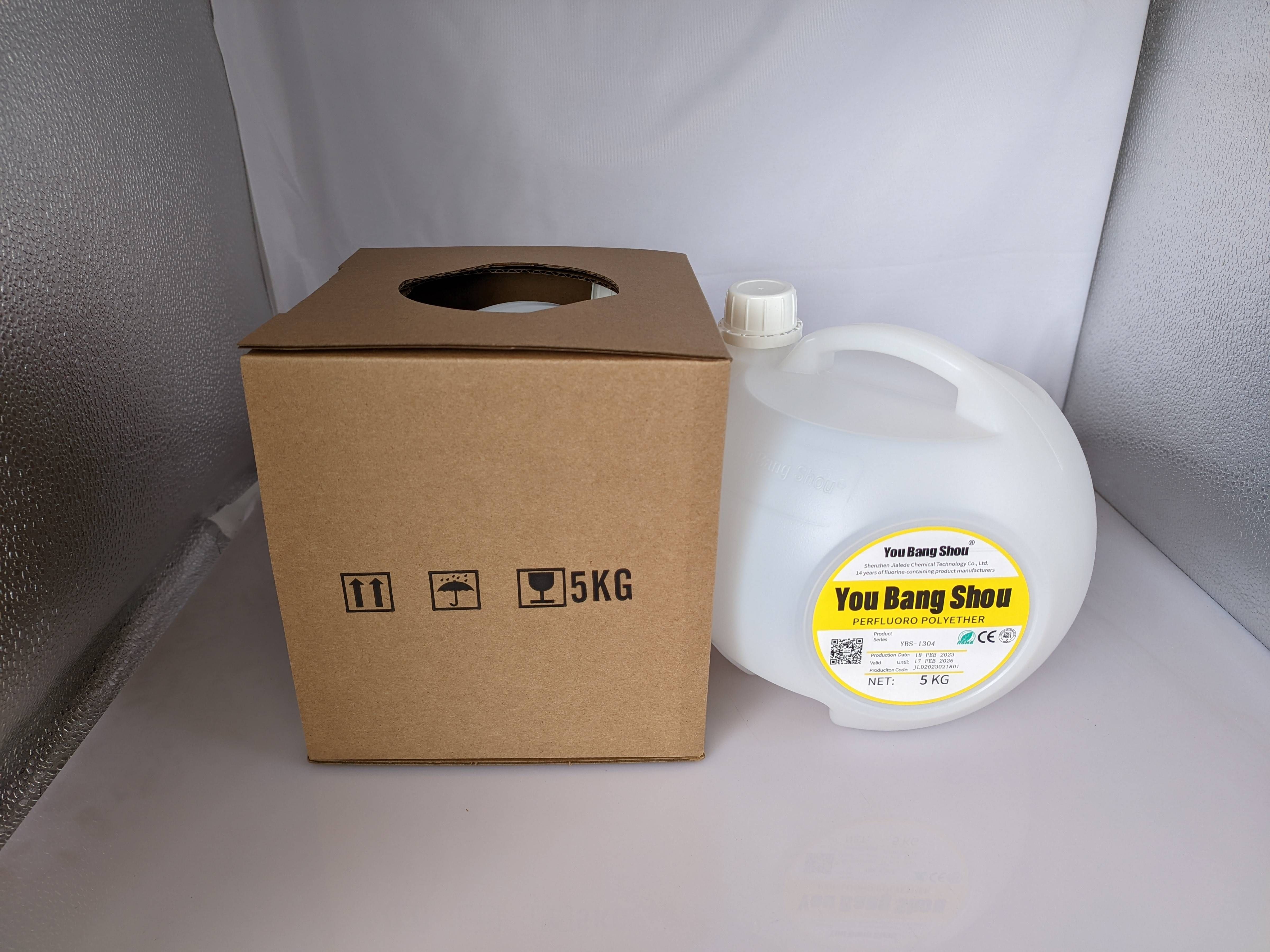

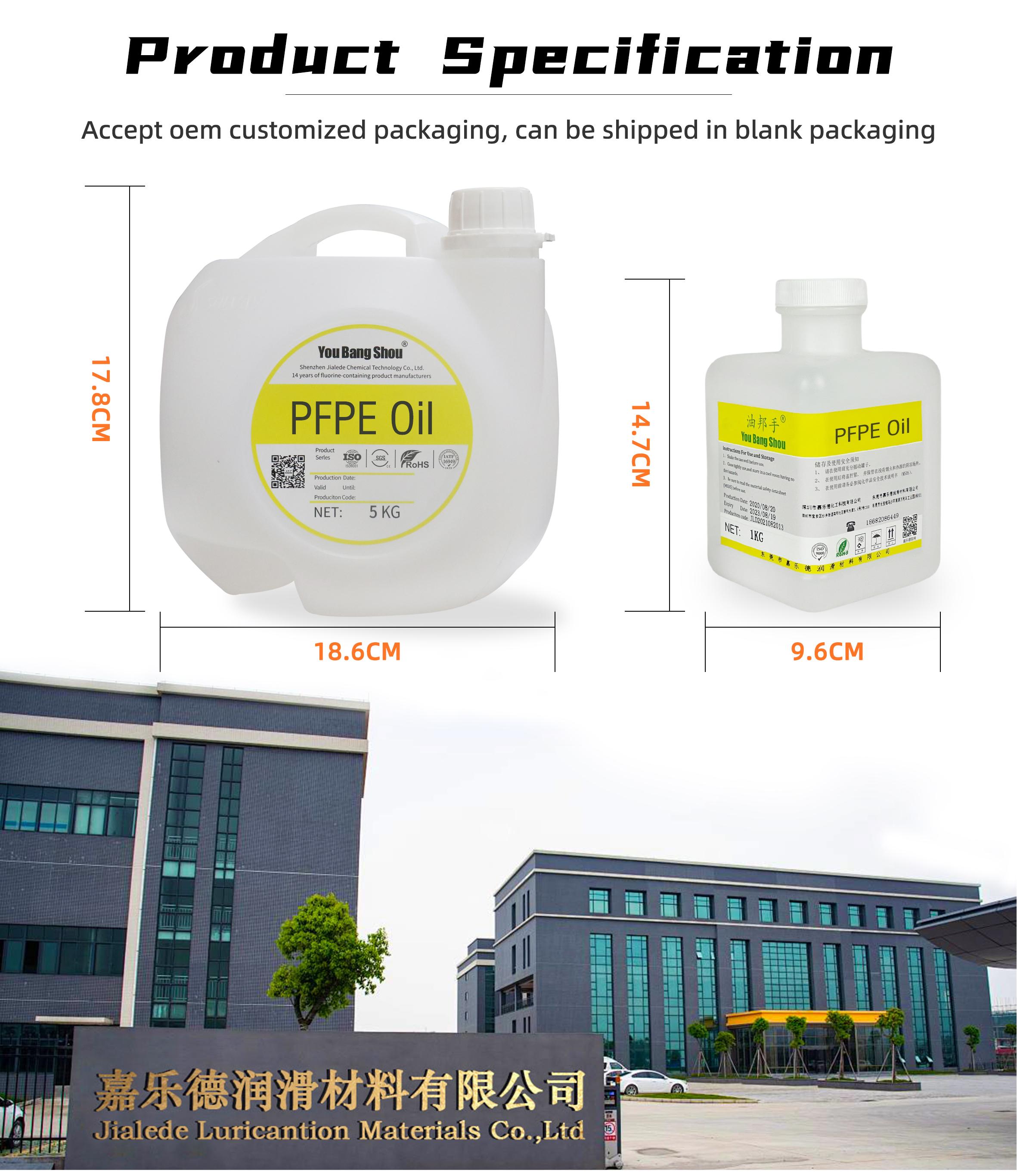

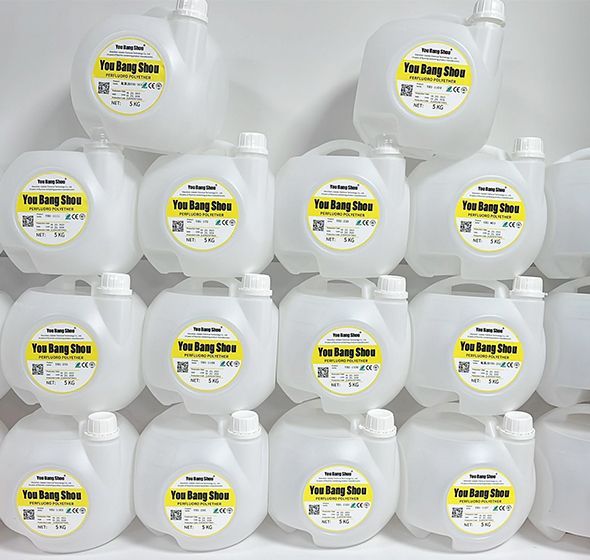

Equivalent to Galden D02 D02ts D03 D05 Perfluorinated Fluid Heat Transfer Fluid 11 This product is supplied in 1KG and 5KG 25KG 200KG drums packaging.

dry etching

high-speed train traction transformers

coolants

wafer testing

electric vehicle battery packs

semiconductor manufacturing

immersion cooling of computer server systems

Equivalent to Galden D02 D02ts D03 D05 Perfluorinated Fluid Heat Transfer Fluid 19

Operating Precautions

■ Use in well-ventilated areas.
■ Avoid contact with eyes and prolonged skin exposure.
■ Keep container tightly closed when not in use.
■ Do not mix with other chemicals.
■ Store in a cool, dry place away from sunlight.

How To Use

■ Apply by immersion, spraying, or ultrasonic cleaning.
■ Ensure full contact with the parts to be cleaned.
■ Allow to evaporate naturally after cleaning, no rinsing needed.
■ Do not mix with other chemicals.
■ For cooling, use in closed systems and keep sealed.
