Perfluamine Fluorinated Liquid equivalent to 3M™ FC-3283

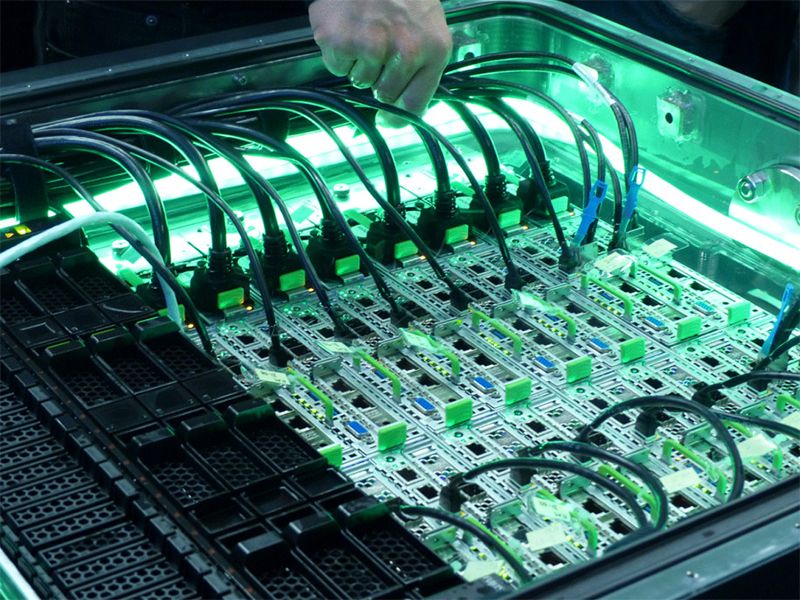

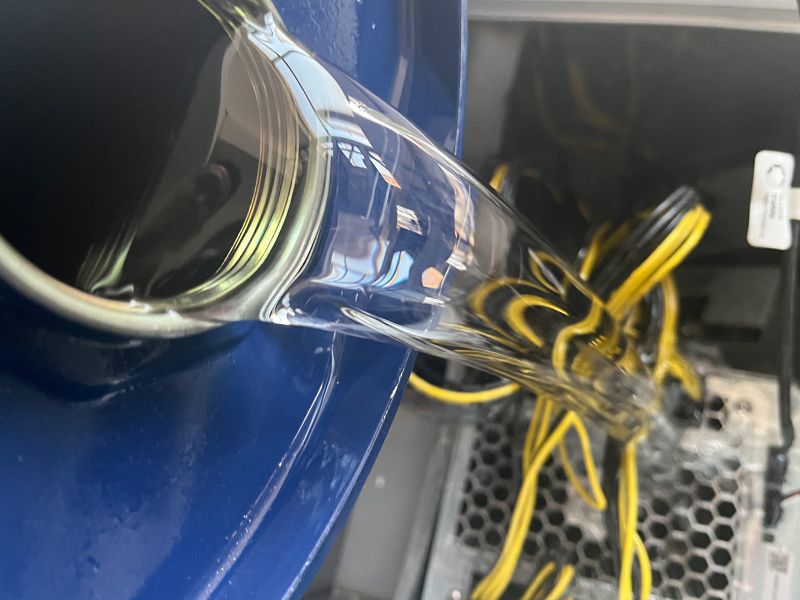

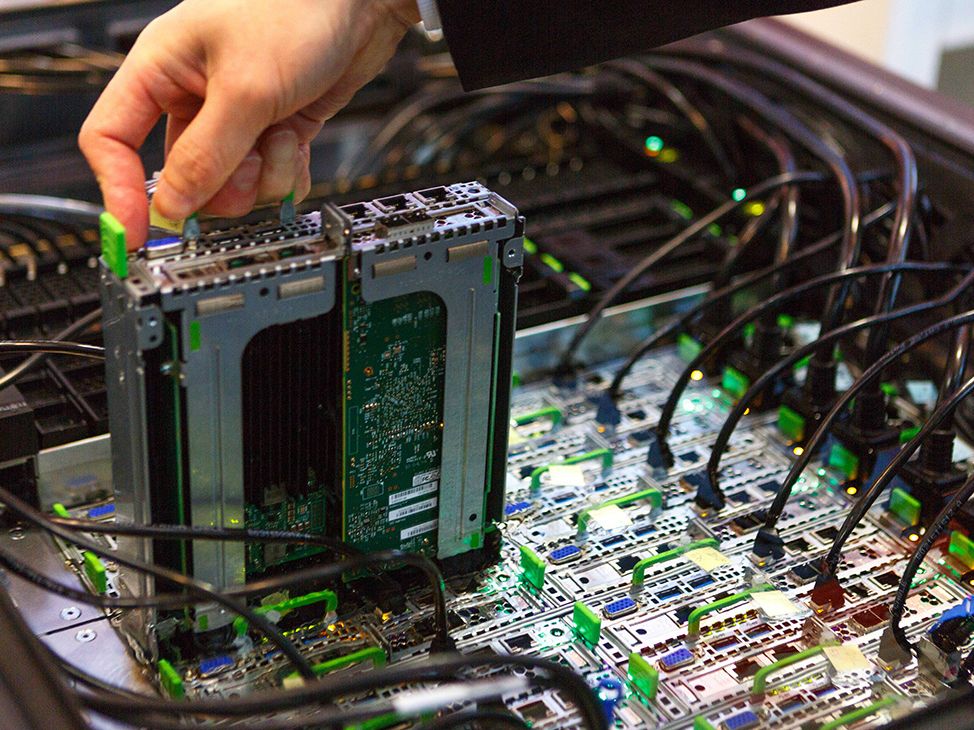

This product has ideal high insulation performance, high density, and high boiling point, and can be widely used in various temperature controlled heat dissipation systems.It is widely used in various temperature control and heat dissipation systems, especially for immersion cooling of computer server systems. It is also used in temperature control and cooling of equipment in semiconductor manufacturing, cooling and safety protection of electric vehicle battery packs, etc. It is also used as a cleaning agent for electronic products. It is also used as an intermediate in the synthesis of fluorinated surfactants and other fluorinated chemicals.
You Bang Shou is assured with an invincible quality.

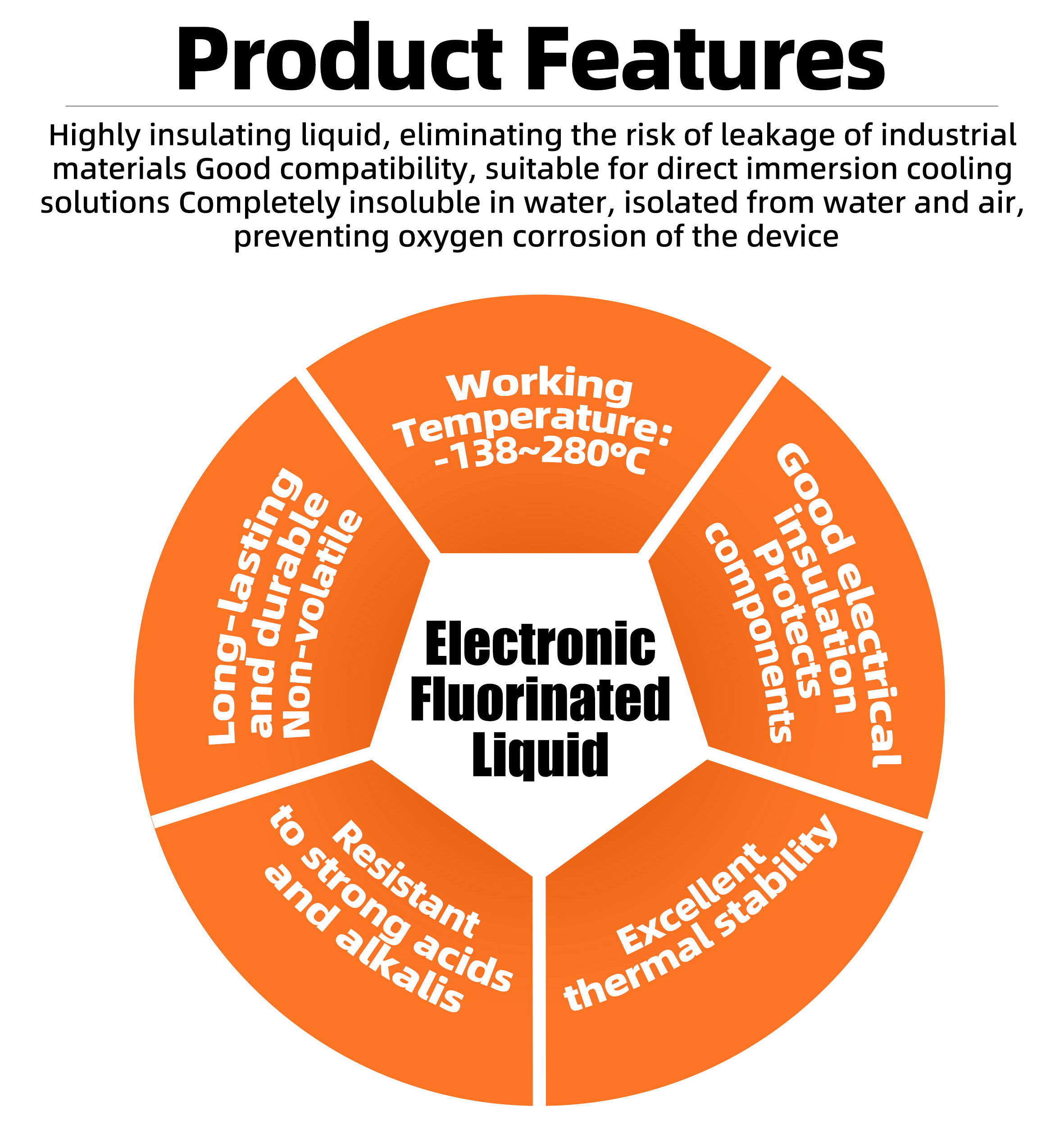

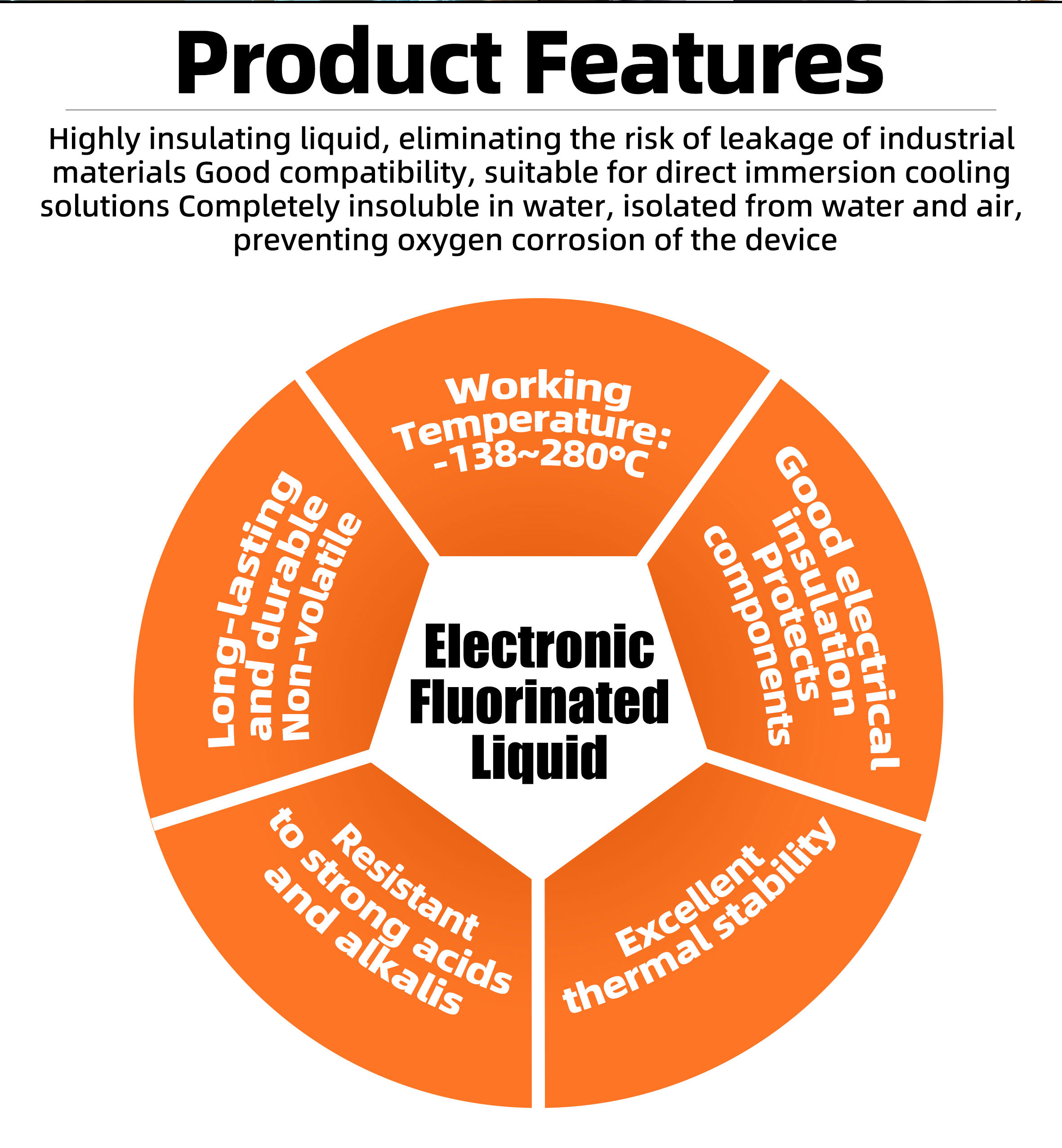

Product Features
1.It has ideal high insulation performance, high density and high boiling point, and can be widely used in various temperature-controlled heat dissipation systems.
2. Non-hazardous goods, non-flammable and non-explosive, with no ignition point and no flash point.
3. Good electrical insulation with very high breakdown voltage.
4. Low dielectric constant and dielectric loss, which do not affect signal transmission.
5. Good flowability to dissipate heat well in the temperature control system;
6. Non-toxic, non-hazardous and non-irritating.
7. Environmentally friendly, with very low GWP, ODP 0, and no ozone destruction.
8. Insoluble with water, to avoid the damage of water to the components.

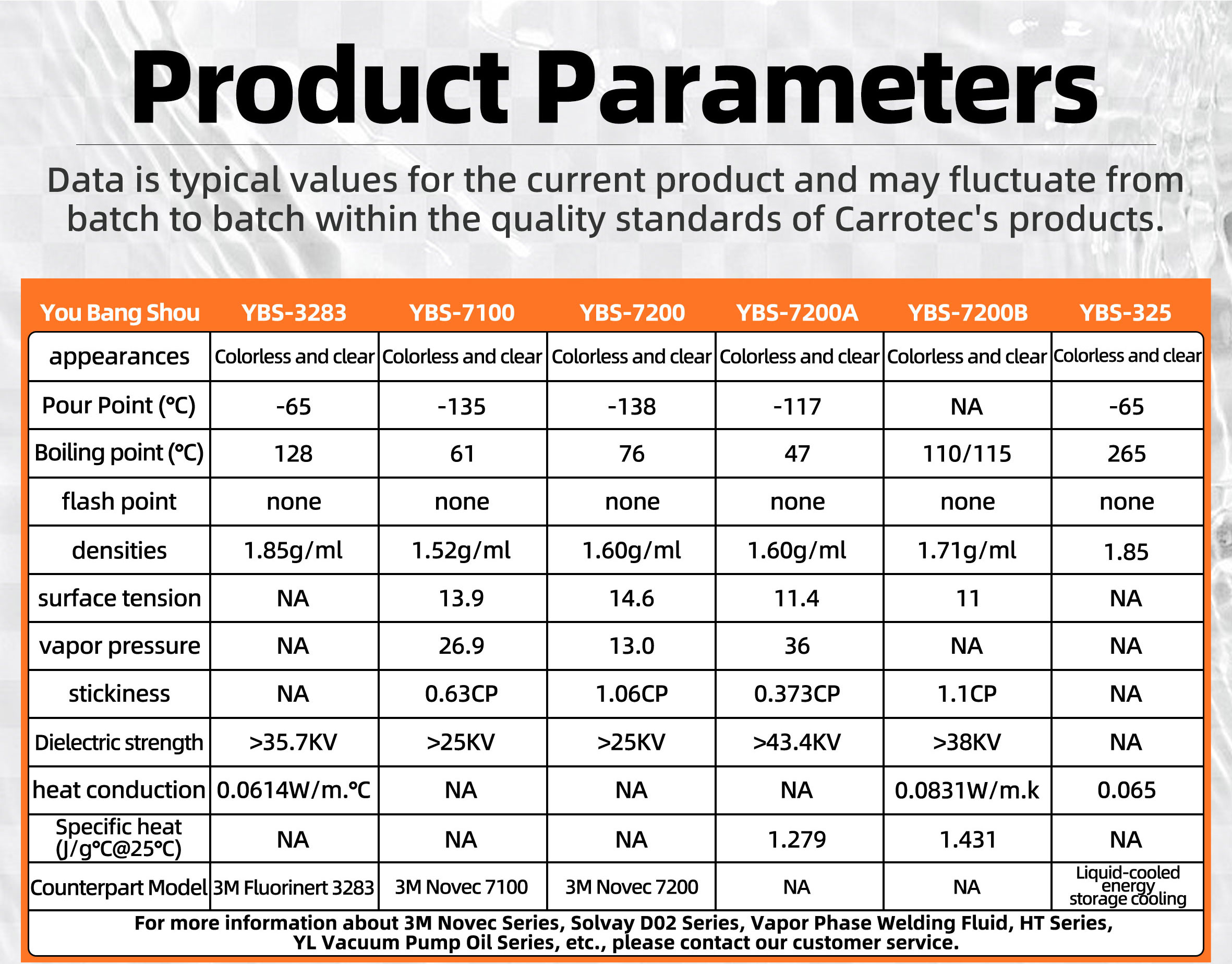

Main technical parameters of YBS-3283
| Project | Parameter |
| Appearance | Clarified, colorless |
| Odour | Odorless |
| Boiling point | 128℃ |
| Density (25℃) | 1.85g/ml |
| Permittivity (1MHz) | 2.09 |
| Dielectric strength (2.5MM) | >35.7kV |
| Dielectric loss (1MHz) | 0.00029 |
| Surface tension | 15.69mN/m |
| Freezing point | -82°C |
| Saturated vapor pressure (20℃) | 1.516kPa |
| Critical pressure | 4.28MPa |
| Critical temperature | 196.54°C |
| Flash Point | None |
| Ozone Depletion Potential (ODP) | 0 |
| Global Warming Potential (GWP) | 108 |
| Specific heat (25℃) | 1.107J/(g.K) |
| Thermal conductivity (25℃) | 0.0614W/(m.k) |
| Latent heat of vaporization | 82.8KJ/kg |
| Kinematic viscosity (25℃) | 1.376mm2/s |
| Volumetric resistivity (25℃) | ≥1×1015 Ω.mm |
YBS-3283 Application
The production technique You Bang Shou adopts is up to and exceed the industrial standard.
