Immersion Cooling Oil Equivalent to 3M Novec 7200

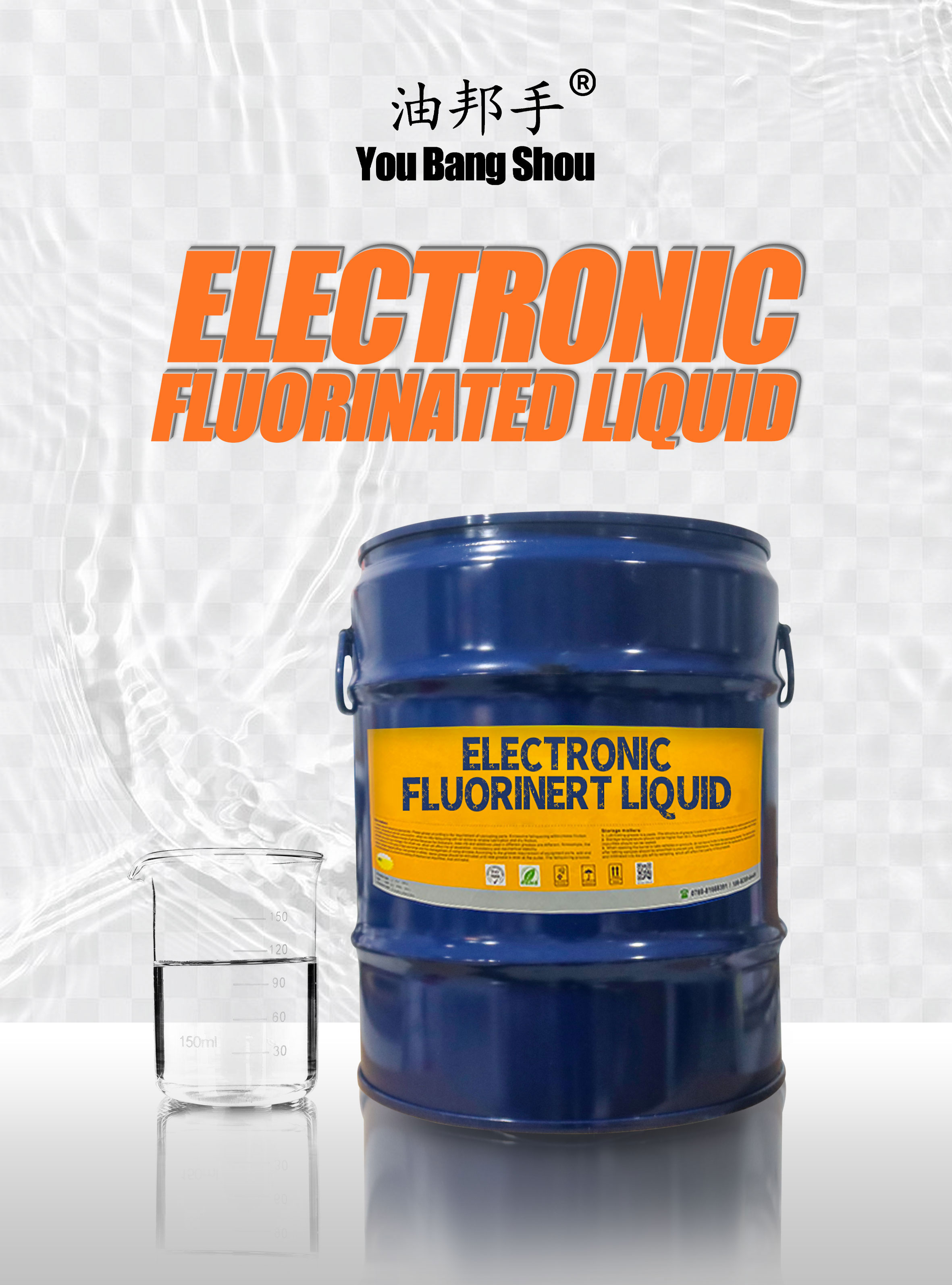

Jialede YBS-J7200 Electronic Fluoride is a colourless and transparent liquid
YBS-J7200 Electronic Fluoride is a colourless and transparent liquid with the chemical name of Ethoxy-nonafluorobutane(C4F9OC2H5). It has zero ozone depletion potential substances(ODP), low global warming potential (GWP), short atmospheric residence time, high chemical and thermal stability, low toxicity, low surface tension, and it is an ideal ODS substitute, which is widely used in many fields such as medical, electronics, metals, precision instruments, optical lenses, communications and aerospace.
The product is in accordance with international quality standards.
Application
①Used as a cleaning agent
② Used as solvent

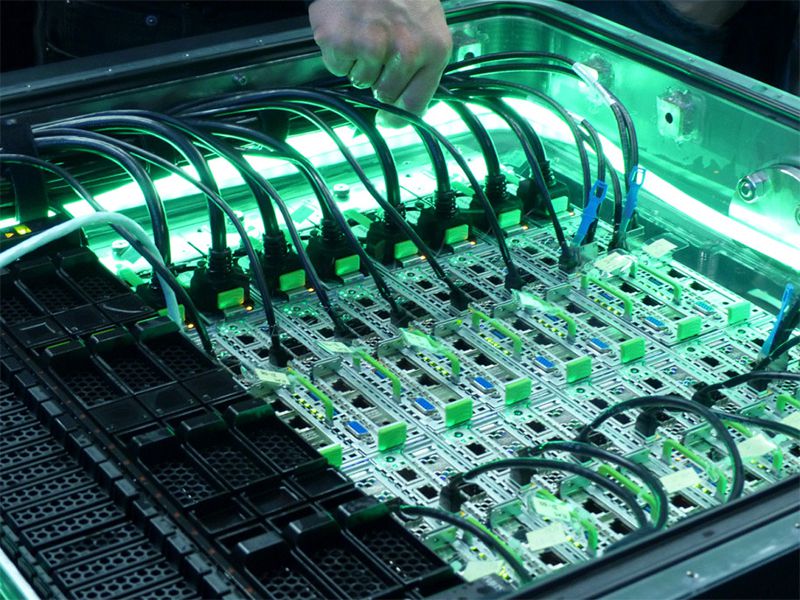

③ Used as coolant

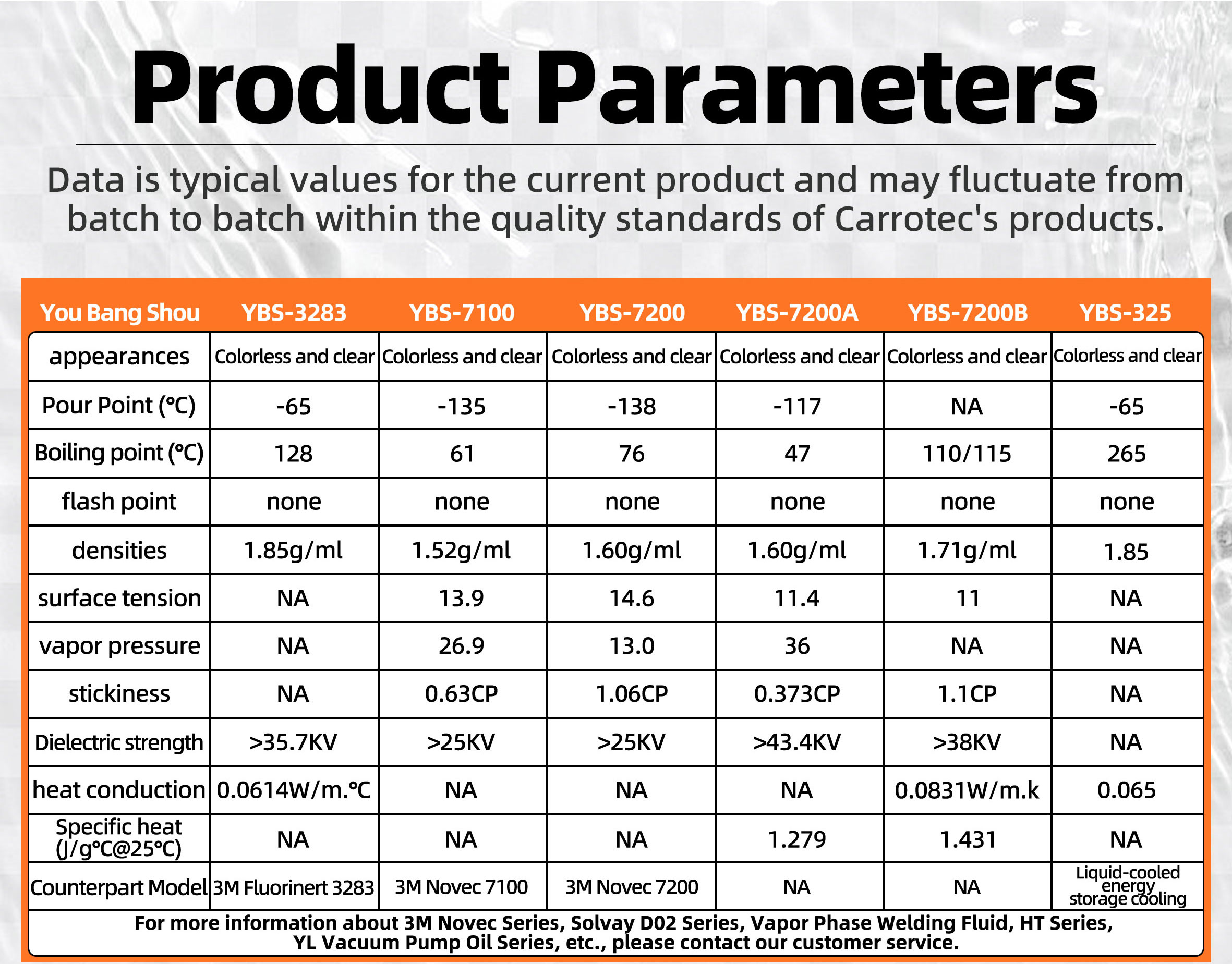

Physical Properties
| Properties | YBS-J7200 |
| Molecular Formula | C5F11OCH3 |
| Molecular weight | 264 |
| Boiling point(°C) | 78 |
| Freezing point(°C) | -138 |
| Liquid Density(g/ml@25°C) | 1.6 |
| Absolute viscosity(CP@25°C) | 1.06 |
| Solubility of solvent in water(ppmw) | <20 |
| Solubility of water in solvent(ppmw) | 92 |
| Saturated vapor pressure(KPa@25℃) | 13 |
| Specific heat(J/g.°C@25°C) | 1.172 |
| Surface tension(mN/m) | 14.6 |

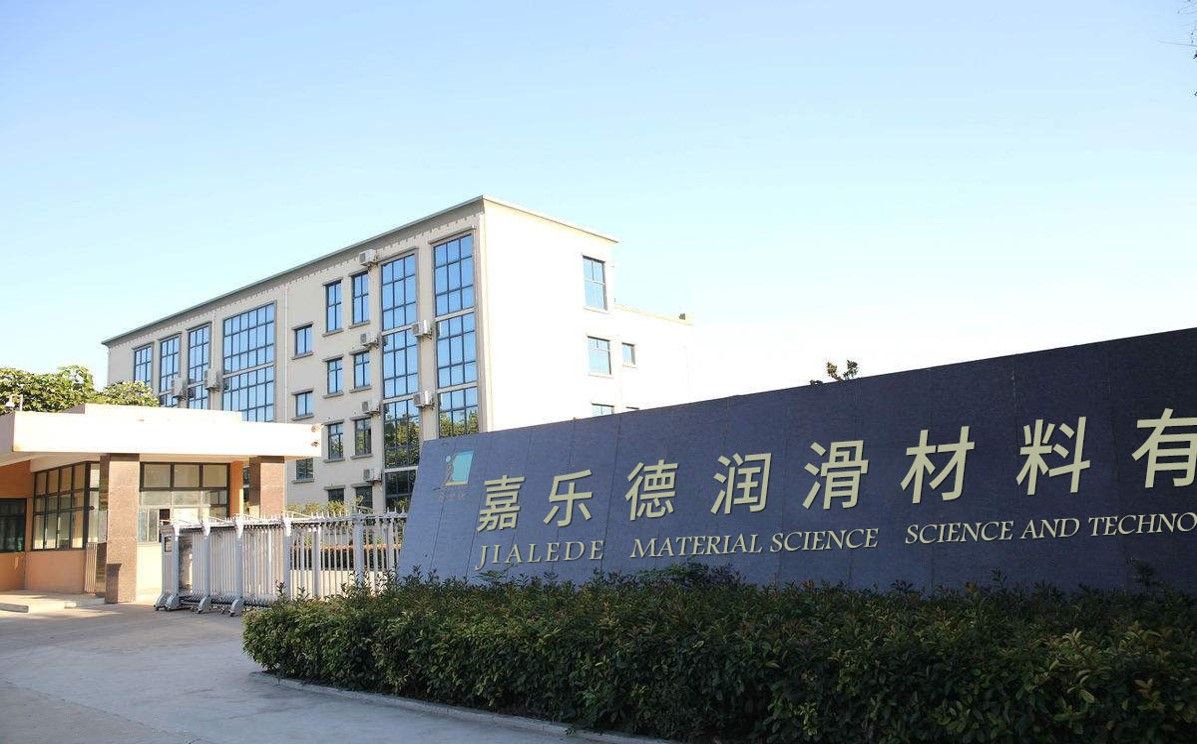

Powerful factory
Compatibility testing of YBS-J7200 fluids has proven its good compatibility. It is compatible with many metals, plastics and elastomers when immersed at boiling temperatures.

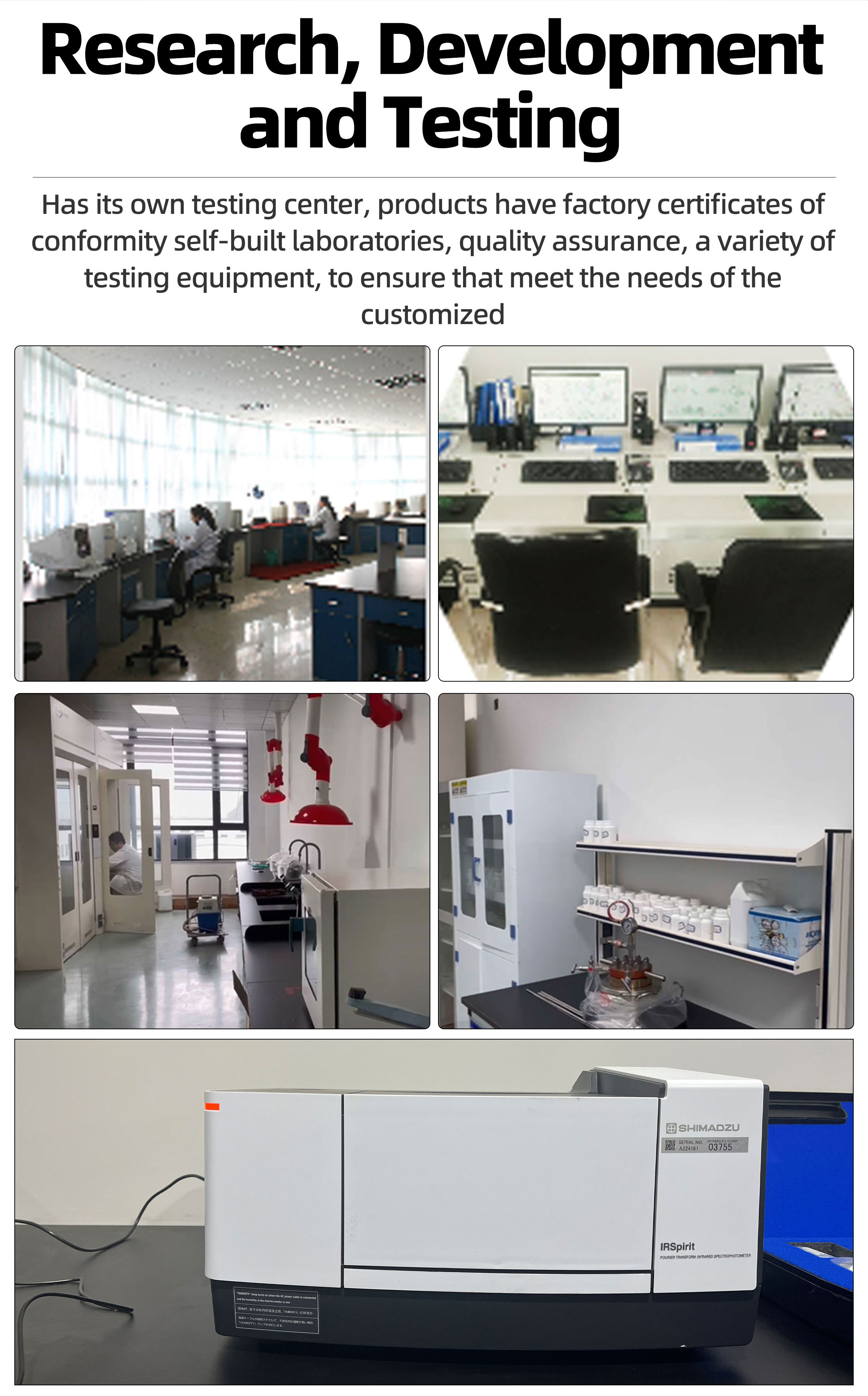

It is also compatible with particularly sensitive plastics such as polycarbonate and polymethylmethacrylate (PMMA). Our engineers can suggest suitable compounds and assist with material compatibility tests.
You Bang Shouhas a user-friendly functional design, providing the convenience for users.
