You Bang Shou Heat Transfer Oil

YBS-HT110 is a new type of perfluoropolyether product. It has excellent chemical resistance, thermal resistance and dielectric properties. Non-toxic, no flash point, no ignition point, low viscosity and other characteristics, is a new generation of heat transfer fluid.

Model:

YBS-HT110

Inquiry

Write a Review

The product has passed the strict quality inspection of the authoritative third parties.

Applications

YBS-HT230 is used in semiconductor, pharmaceutical, chemical, aviation, liquid crystal display manufacturing and other fields. And can be used in data centers with high operating temperature to achieve cooling, energy saving and consumption reduction, and can be used for liquid dielectrics, insulation protection in electronic systems.

LS230 Heat Transfer Fluid Application

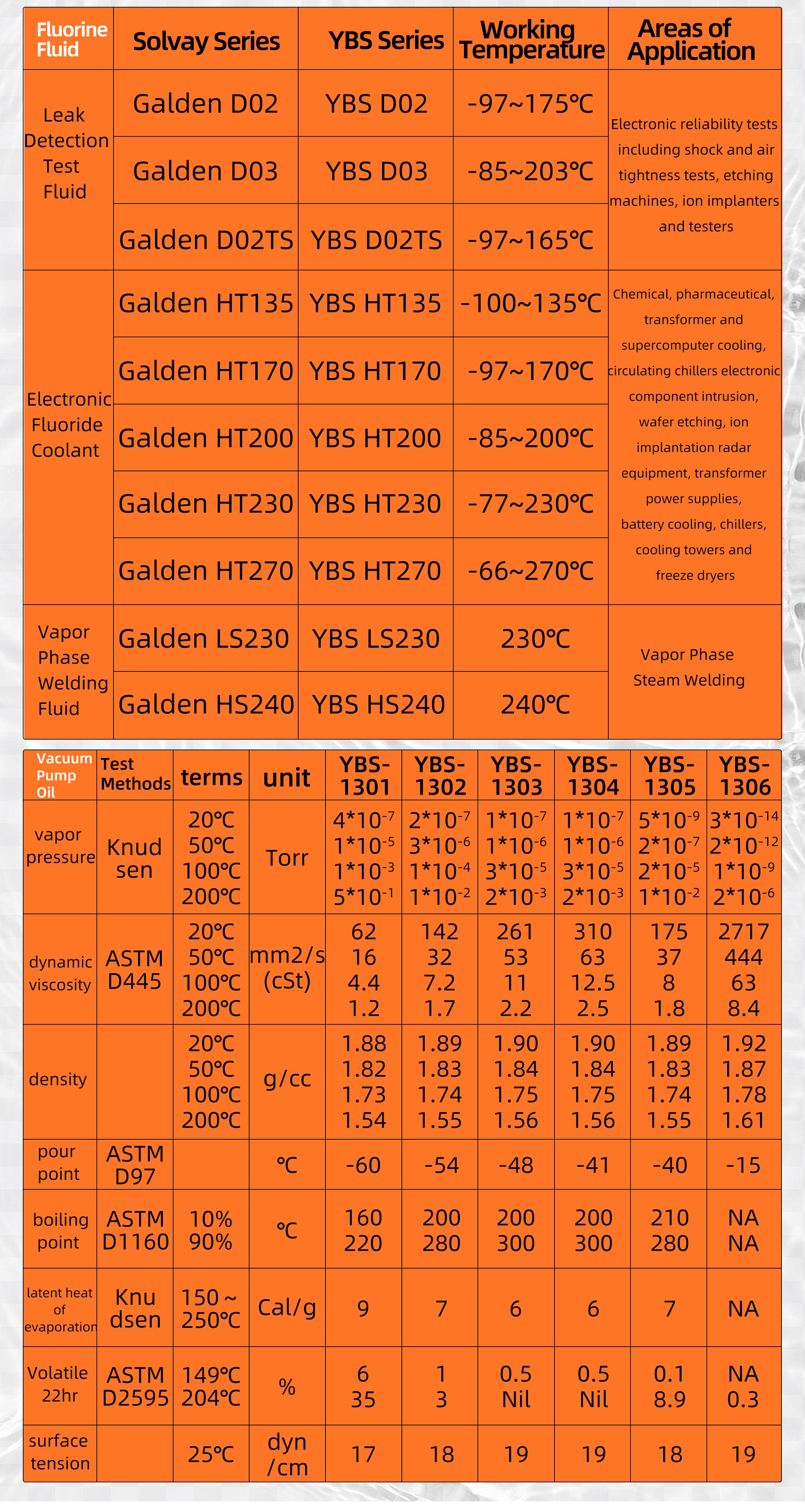

Data Sheet

Main Properties	Technical parameters
Appearance	YBS-170	YBS-200	YBS-230	YBS-270
Boiling point/°C	170	200	230	270
Pour Point	-97	-85	-77	-66
Density/g-cm³	1.78	1.79	1.81	1.84
Kinematic viscosity/cSt(@25°C)	1.7	2.9	4.7	12.0
Specific heat / J-kg '-K1	960	960	960	960
Thermal conductivity/W-m q-K1	0.065	0.065	0.065	0.065
Dielectric strength/kV(2.54mm)	40	40	40	40
Dielectric constant	<2	<2	<2	<2
Volume resistivity/Ohm-cm	>1.0-10¹⁵	>1.0-10¹⁵	>1.0-10¹⁵	>1.0-10¹⁵
Dissipation factor(1 Khz)	2-W⁴	2-W⁴	2-W⁴	2-W⁴
Solubitity of water/ppm(wt)	<10	<10	<10	<10
