Data Center Cooling Equivalent to 3M HFE 7300 Electronic Fluoride Liquid for Server Motherboard
The chemical name of Jialede YBS-J7300 hydrofluoroether is nonafluorobutyl methyl amide (C4F9OCH3), which is a liquid with good fluidity, colorless, odorless, clean and other characteristics. With excellent thermal stability and chemical stability, as well as good environmental safety and non-flammability, it is widely used in electronics, electricity, aviation, automobiles, chemical industry and other fields. The ozone depletion potential (ODP) of Jialede YBS-J7300 is zero. Compared with HFC and PFC, its extremely low greenhouse effect value provides an ideal long-term solution for advanced enterprises that advocate green environmental protection.
The product will not be delivered until it is assured to be pf the high quality.

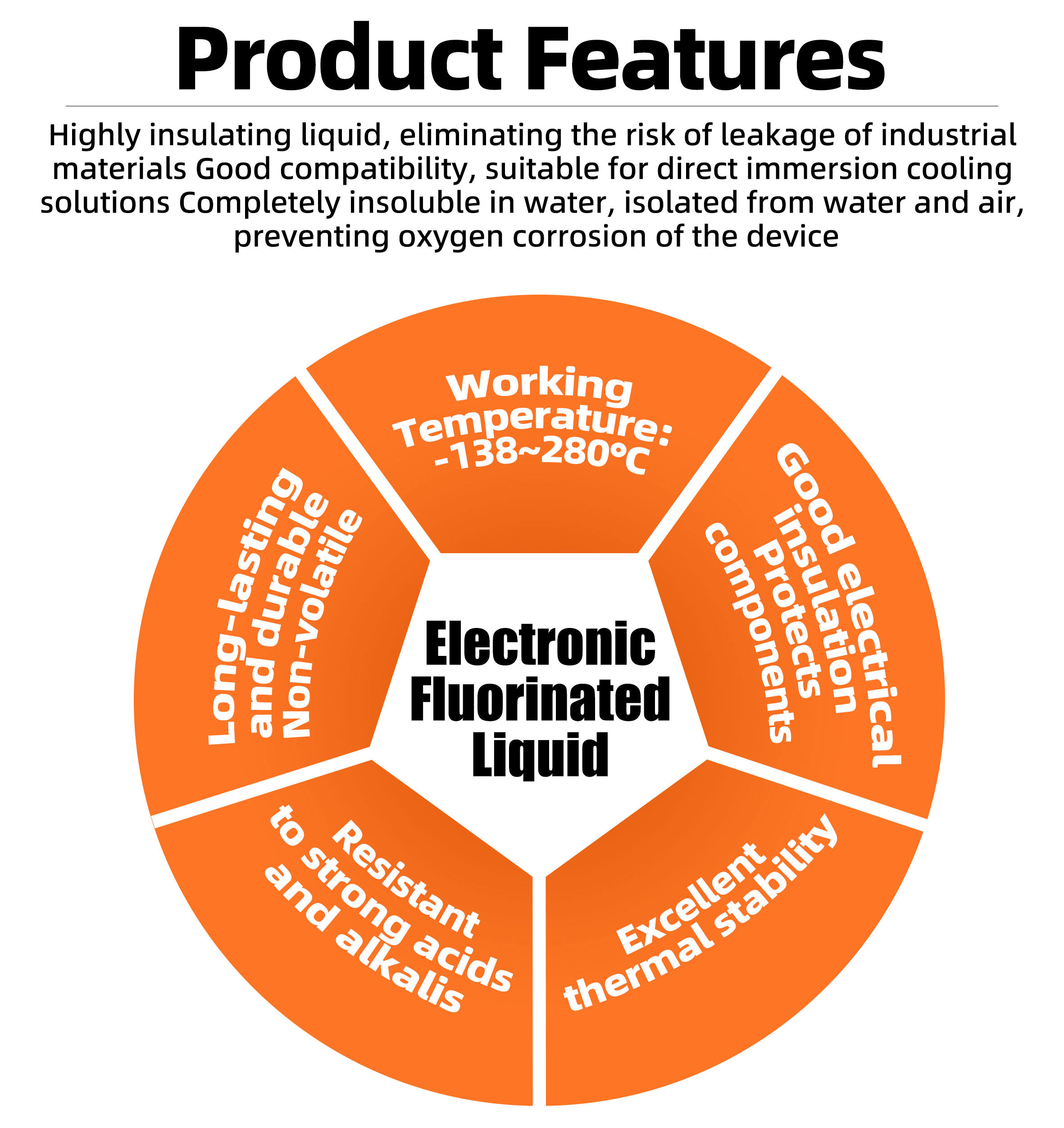

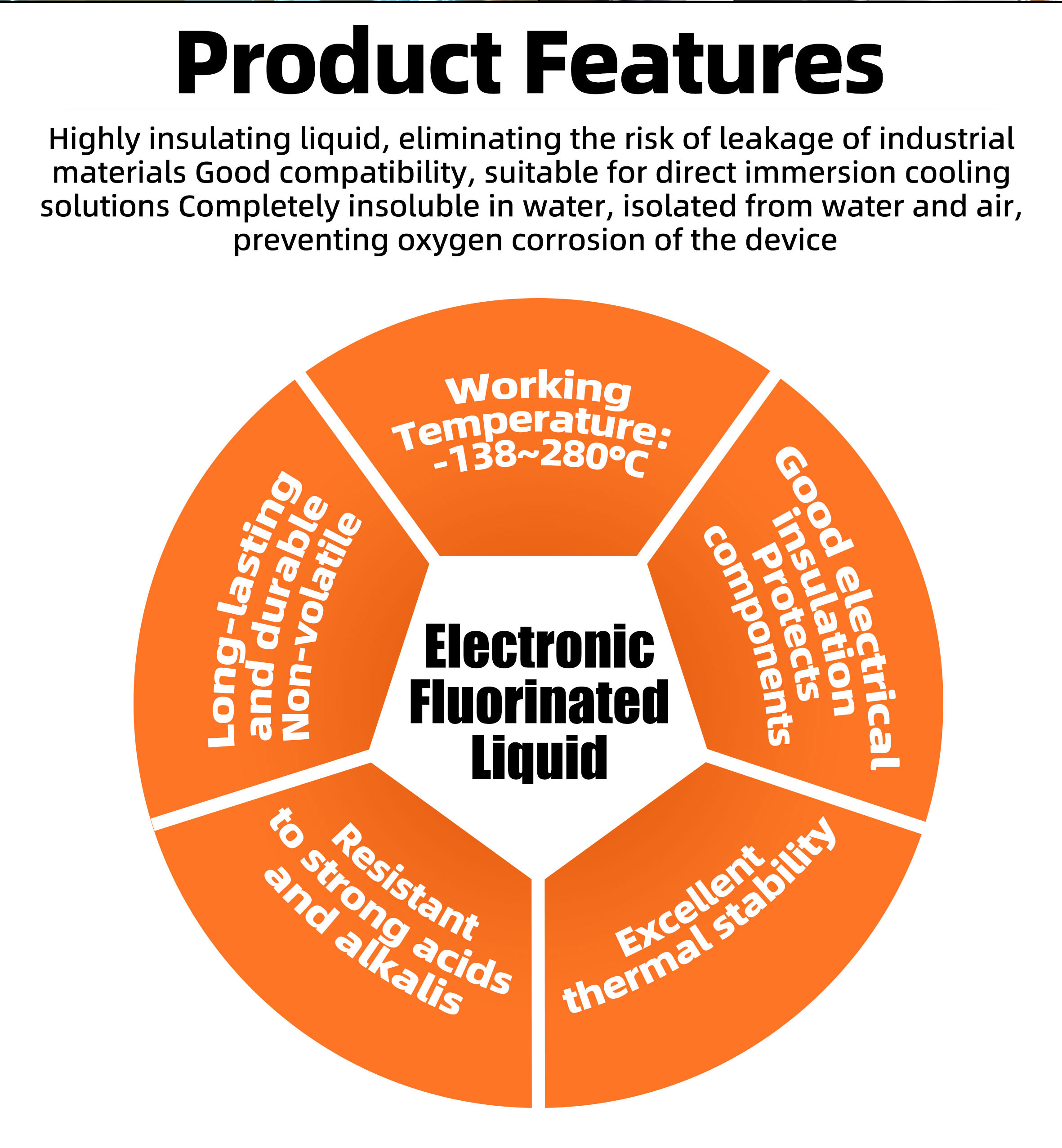

Highlights
● Non-flammable
● Non-conductive
● Compatible with plastics
● Low toxicity
● Low global warming potential (GWP)
● Zero ozone depletion potential (ODP)
● VOC-exempt solvent (US EPA)
● Low surface tension penetrates tight spaces for improved cleaning

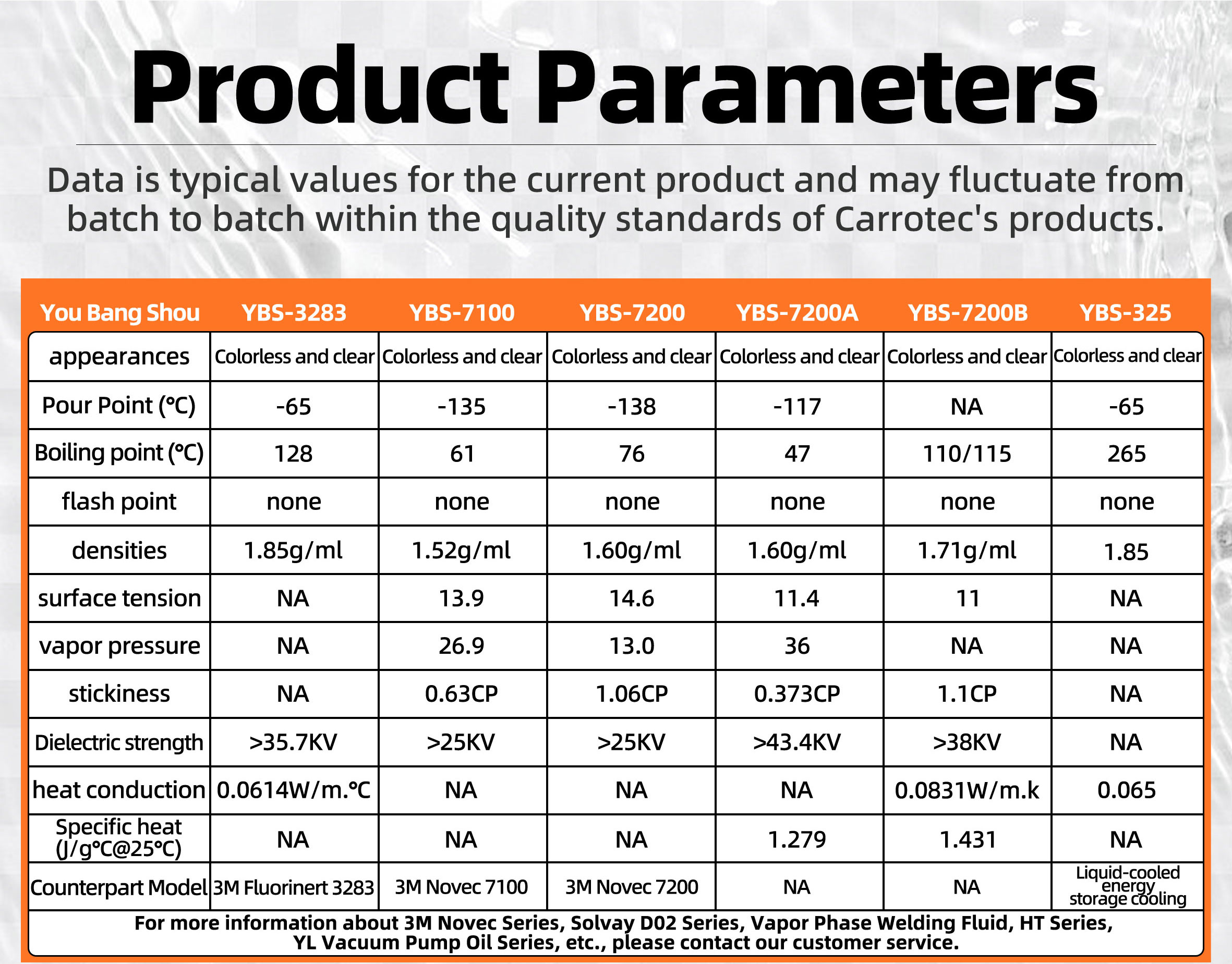

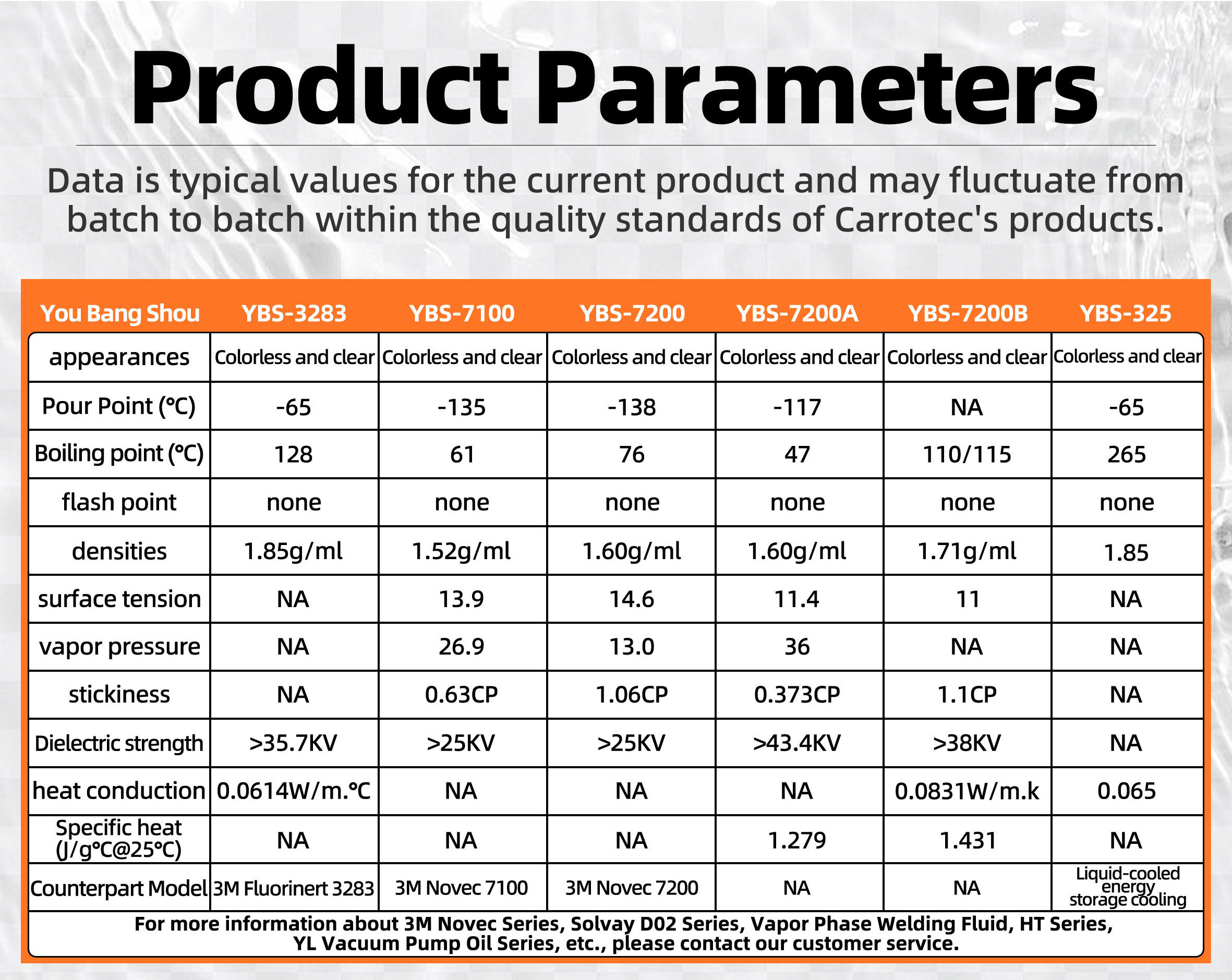

Data Sheet
Item | Parameter |
Appearance | Clarified, colourless |
Odour | colourless |
Dielectric constant (1MHz) | 7.16 |
Dielectric strength | 25.3KV |
Surface Tension | 15.01mN/m |
Kinematic viscosity (25°C) | 0.9382mm2.s-1 |
Boiling point | 98℃ |
Freezing point | -79.95℃ |
Density | 1.660g/ml |
Specific heat | 1.14J.g-1.K-1 |
Thermal conductivity | 0.062W.M-1.K-1 |
Refractive index | 1.279 |
Saturated Vapour Pressure | 4.5kPa |
Critical temperature | 205℃ |
Critical pressure | 2.93kPa |
Latent heat of gasification | 97.99kJ.kg-1 |
Dielectric loss (10MHz) | 0.0143 |
Volume expansion coefficient (20-80°C) | 14.6 |
Flash point | None |
Ignition range | None |
Ozone Depletion Potential (ODP) | 0 |
GWP | LOW |
Applications
Aerosol Formulations, Cleaning, Data Center Cooling, Deposition Solvent, Document Preservation, Electronic Cooling, Heat Transfer, Immersion Cooling for Data Centers, Organic Rankine Cycle, Oxygen System Cleaning, Precision Cleaning, Preservation for Biological Specimens, Rinsing, Solvent Cleaning.
With the comprehensive process visualization across all production stages, the product is guaranteed to be zero-defect.

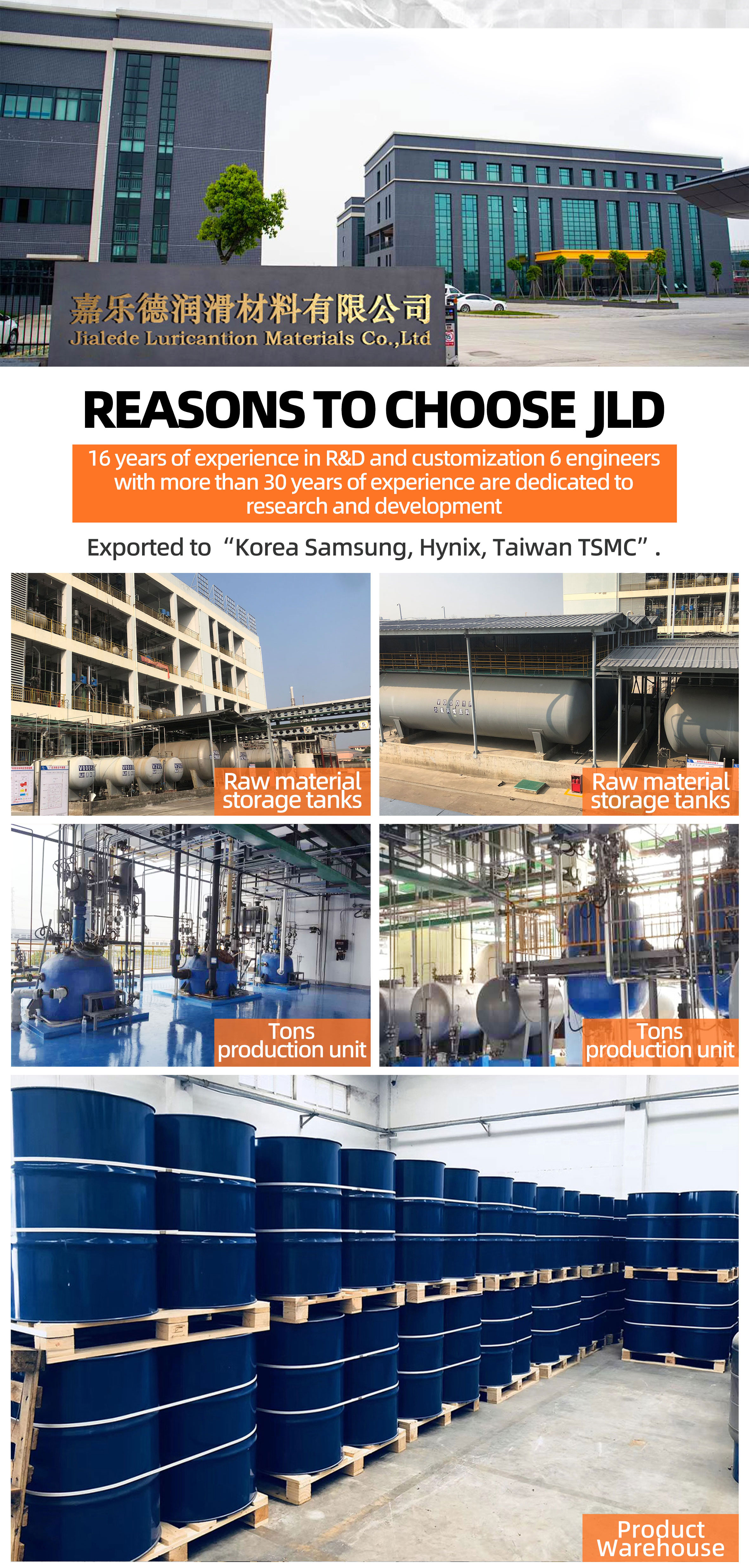

Industrial Lubrication Manufacturer.
