Model: YBS-1672
Jialede YBS-1762 sealing silicone grease is a chemical substance used for sealing and insulating valves and O-rings on electrical equipment. It is available in liquid and solid forms, with an operating temperature range of -50°C to 200°C. Its advantages are good water resistance, good sealing, resistance to mineral oil and most chemicals, and good electrical insulation.
Performance Advantage
◎ Excellent high temperature sealing performance.
◎ Excellent sealing performance and high and low temperature performance, working temperature -40~220 degrees.
◎ The excellent oil film composition of the base oil gives the grease higher anti-friction and wear characteristics.
◎ Excellent high temperature and adhesion properties, low friction coefficient and high load carrying capacity.
◎ Excellent plastic compatibility performance.
◎ Good insulating properties, strong material adaptability, compatible with most plastics and silicone.
◎ Excellent corrosion protection performance
◎ Excellent rust and corrosion resistance, effectively reduce the maintenance cost of lubricated parts by 60%. Copper color, non-staining, acid and alkali corrosion resistance and non-corrosive metal, resistance to resist hot and cold water.
◎ Enhanced extreme pressure, anti-wear properties.
◎ Excellent load-bearing capacity and lubrication performance, lower wear coefficient, in high temperature and high load conditions to reduce lubricated parts wear 80%. Wear-resistant, anti-shaft locking, even under high surface pressure can prevent hysteresis phenomenon.

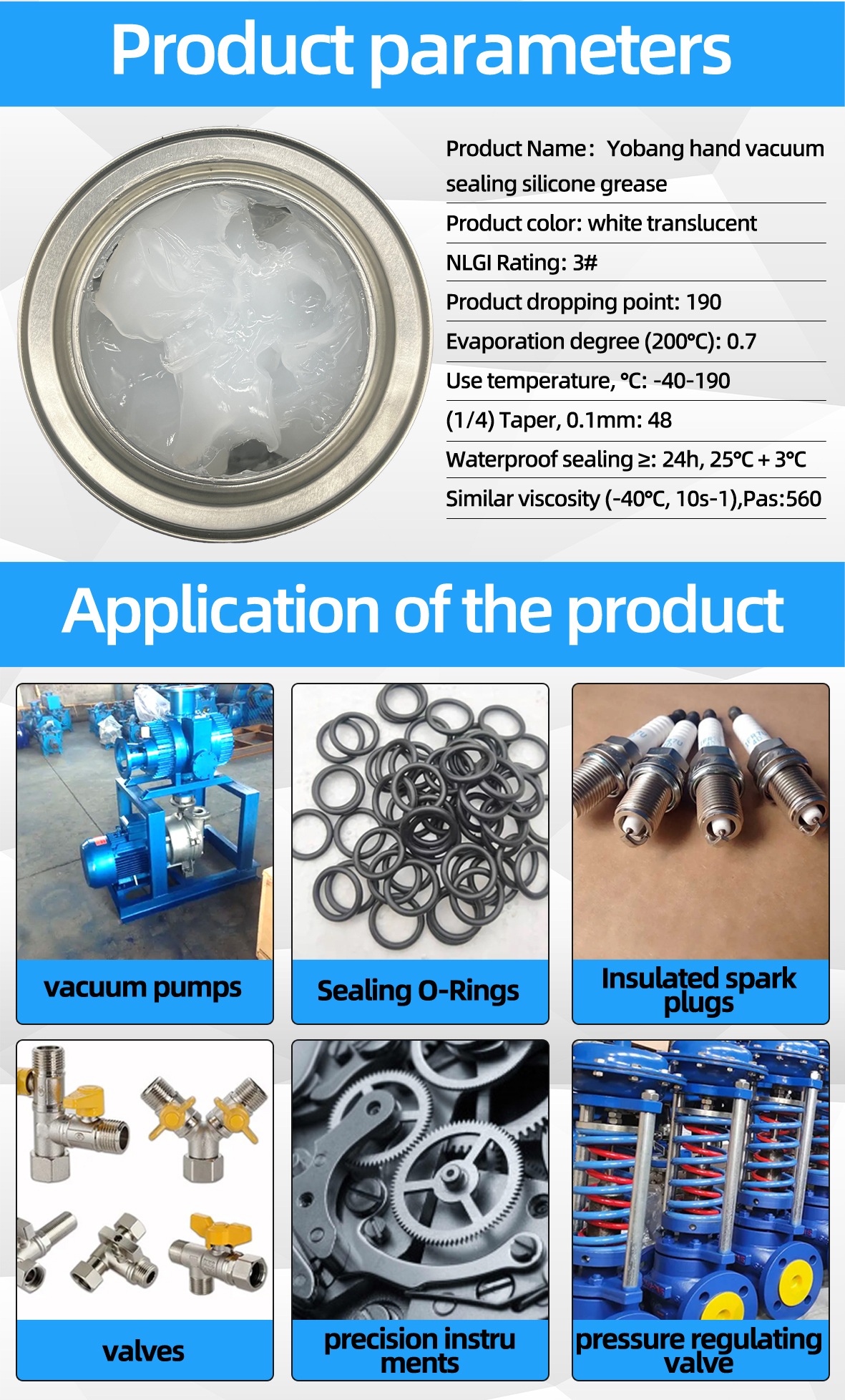

Typical Data
| Item | Quality Indicators | Test Method |
| Appearance | White translucent ointment | Visual inspection |
| NLGI Grade, # | 3 | GB/T 269 |
| Working taper, (25°C), 0.1mm | 220-250 | GB/T 269 |
| Dropping point | No | GB/T 4929 |
| Oil separation degree (100℃, 24h),% ≤ | 1.5 | HG/T2502-1993 |
| Volatile matter content,% ≤ | 1.4 | HG/T2502-1993 |
| Waterproof sealing ≥ | 3 | HG/T2502-1993 |
| Corrosivity test | None | HG/T2502-1993 |
| Electrical strength, Mv/m | 14.6 | HG/T2502-1993 |
| Operating temperature, ℃ | -40-220 | -- |
Application
◎ Sealing and lubrication of low-speed sliding parts such as various valves, cylinders, plugs, joints and so on.
◎ Lubrication and sealing between metal and metal, metal and plastic moving parts.
◎ Apply to the lubrication and sealing of the ground glass joints and glass piston in the vacuum system with high vacuum degree up to 7.0×10-7KPa.
◎ Lubrication and sealing of lubrication parts of various toys, aquariums, kitchen appliances and sanitary equipments in water environment.
◎ Lubrication and sealing of lubricated parts of optical equipment, instruments and meters.
◎ Sealing and lubrication of low-speed sliding parts of glass, ceramic or metal valves, solenoid valves, etc. in contact with chemicals.
◎ Apply to chemical contact and glass, ceramic or metal lubrication and anti-corrosion. Applicable to the damping of potentiometer, insulation and sealing of electrical appliances.
◎ Liquid coupling filling medium, automotive brake pumps, O-ring sealing and lubrication.
