Electron Fluoride Solution Electronic Test Liquids

In order to ensure the sealing performance of the sealing device, we use MIL STD883, method 014; MIL STD 750, method 071 or MIL STD 202, method 12 for leakage testing procedures.

● Environmentally good, no harm to the ozone layer

● Higher chemical inertness

● Good heat conduction media

● Chemical and thermal stability

● Non-toxic

Additional Information

Clear, colorless, non-conductive, non-flammable, residue free, thermally and chemically stable liquid ideal for use in many heat transfer fluid applications. Its wide liquid range (-57 to 165 deg C) and compatibility makes it well suited for a variety of electronic single and two phase heat transfer applications, including in the semiconductor market for etchers, ion implanters, testers, CVD and TFT manufacturing. Because FC-40 has a narrow boiling range, its composition will change little with time, this keeps fluid loss to a minimum and insures consistent transport properties.

Content: ≥99.5 %

Moisture: ≤0.005%

Acidity: <0.0001%

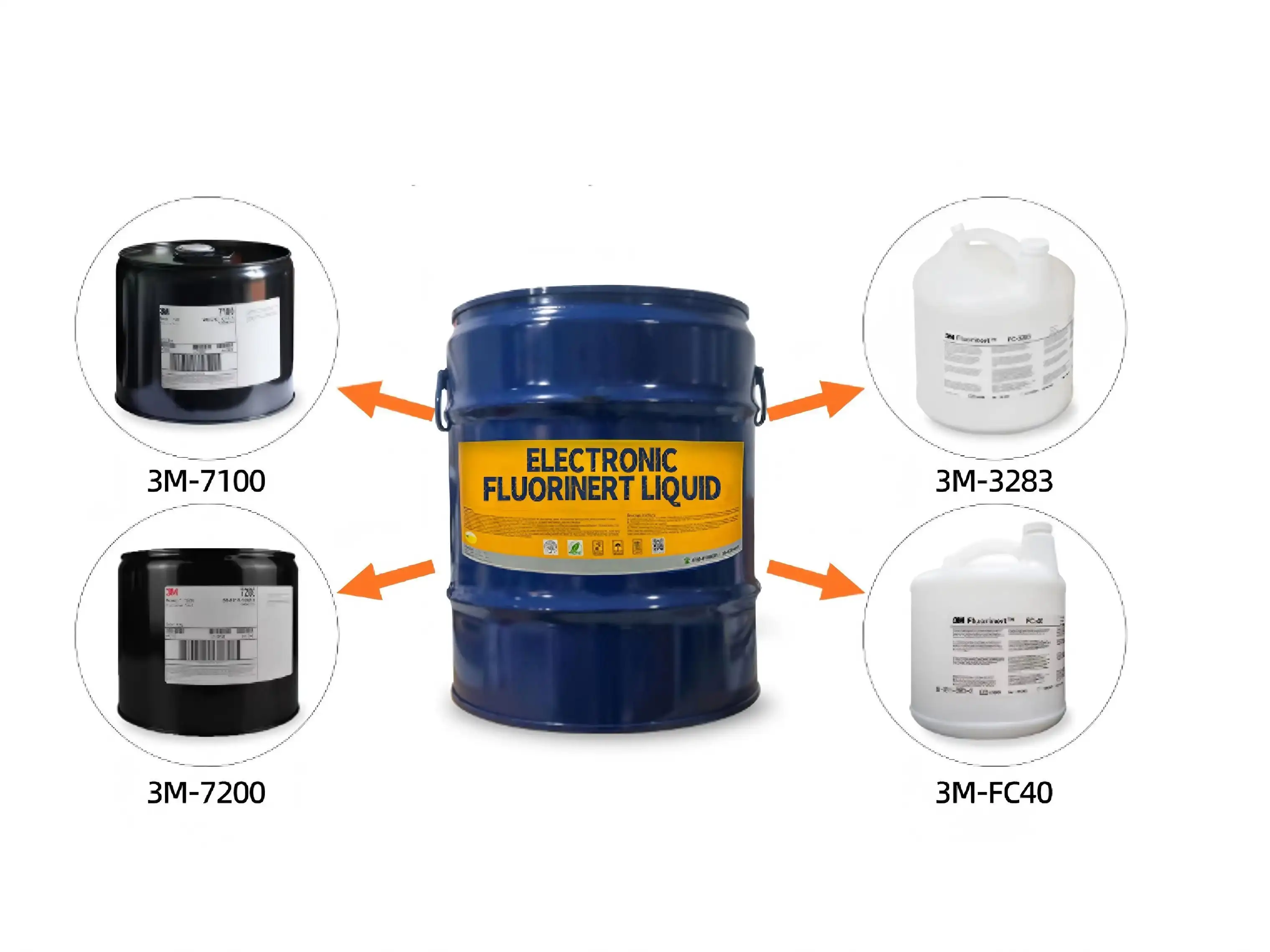

Usage: Fluorine solvent, electronic packaging leak detection liquid, coolant, replacing 3M electronic fluorinated liquid FC40 , D02

Packaging: 5kg/barrel, 25kg/barrel, 250kg/barrel, plastic lined iron barrel

Storage: Store in a cool and ventilated room.
